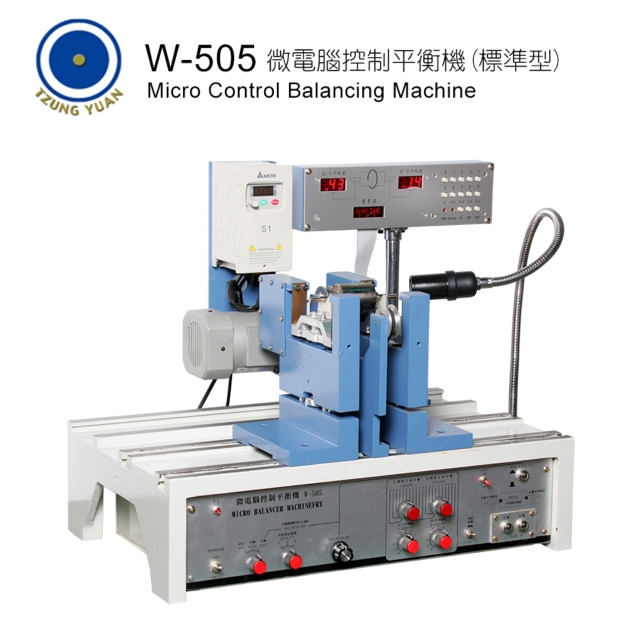

W-505 Micro Control Balancing Machine
Hot- Model:
- W-505
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Good for:
Air dryer, squeezer, fans, vacuum cleaner,
motor driver, eggbeater and so on.
| Features: | |
| ． | To adopt flashlight mode is easily to distinguish unbalanced degree. |
| ． | Equipped computer memory system without adjustment RPM value in a long term. |
| ． | The figure meter is the meanwhile shows the value of average deviation. |
| ． | It can exactly show the RPM value of revised things. |
| ． | To adopt I.C. keeps it in an available stability in a long period. |
Model | W-505 |
Weight rang of workpiece | 0.1 – 3 kg |
Workpiece diameter | 200 mm MAX 400 mm MAX |
Journal diameter | 20 mm MAX |
Distance between bearings | 300 mm MAX |
Balancing Speed | 600 - 3,000 RPM |
| Sensitivity | 1μ |
| Drive motor | 60w Frequency Speed |
| Dimension (L*W*H) | 700 * 400 * 800 mm |
Weight | 70 kg |
