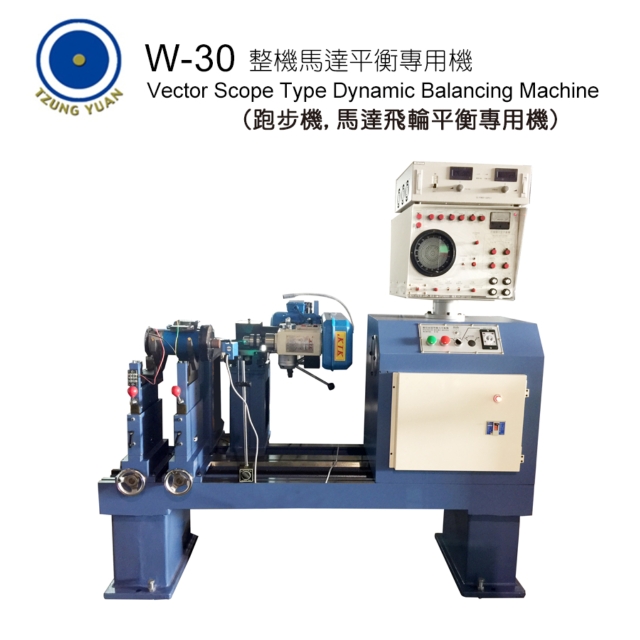

W-30 Vector Scope Type Dynamic Balancing Machine
Hot- Model:
- W-30
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
| Applications: For the balance testing and correcting of rotary components and assemblies for motors, generators, exhaust fans, engines, agricultural machinery, textile machinery, food processing machinery, automobile and motorcycles. Customized balacing machine.MIT! |
| Features: | |
| ． | Cathode-ray tube (CRT) clearly displays unbalanced vectors on the monitor. Note: New model uses 22” flat-screen color display. |
| ． | IC memory device indicates the unbalanced vectors when test objects stop rotating. |
| ． | Broad rpm test range: 200-20,000 rpm (at variable speeds). |
| ． | The tachometer indicates balancing speed at the same time. |
| ． | Sensitive auto-tracking wave filter will not be affected by any rpm change. |
| ． | This ultra-precision unit is designed for the testing of vibration displacement below 1 micron. |
| ． | Users can select proper drive methods for different test objects; belt drive, joint drive, or self turning. |
| ． | When calculating circuit is set to work, the compensation circuit will offset the imbalance of the test objects. |
| ． | No more manual calculating during tests. |
| ． | Highly sensitive integrated circuit (IC) ensures stability of this unit under long-term applications. |
| Model | W-30 | W-100 | W-300 | W-1000 | W-3000 |
Weight range of workpiece | 0.5 ~ 30 kg (50kg) | 1 ~ 100 kg (150kg) | 5 ~ 300 kg (500kg) | 10 ~ 1000 kg (1500kg) | 50 ~ 3000 kg (5000kg) |
| Workpiece Belt drive Joint drive | 400 mm 600 mm | 600 mm 900 mm | 1000 mm 1300 mm | 1300 mm 1600 mm | 1600 mm 2000 mm |
| Distance between bearings | 700 mm | 1000 mm | 1500 mm | 2200 mm | 2500 mm |
| Journal Diameter | 40 mm | 80 mm | 130 mm | 150 mm | 200 mm |
| Vector scope measuring range | 200 ~ 20,000 PRM | ||||
| Balancing speed RPM Belt drive Joint drive | 540 ~ 3,600 | 420 ~ 3,600 | 360 ~ 2,700 | 290 ~ 2,100 | 200 ~ 1,500 |
| Sensitivity | 0.03 mm/s | ||||
| Drive motor | 1.5 kw | 1.5 kw | 3.5 kw | 7.5 kw | 15 kw |
