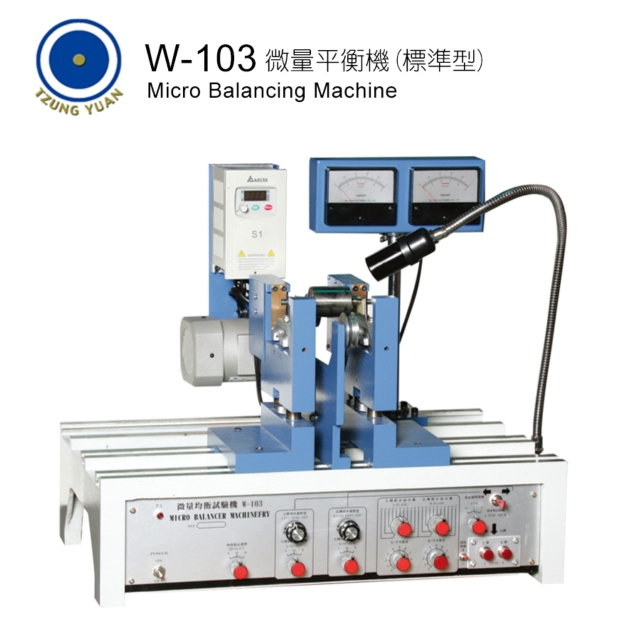

W-103 Micro Balancing Machine

W-103 Micro Balancing Machine

Model:
W-103
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Good for:
Air dryer,Blender,Vacuum cleaner,Toys Motor,Range hood,Electric fan,Fan 3"-16" Eggbeater,
Sewing machine,Electro tools rotor.
Customized balancing machine.

Features:
Flashing light system is adopted, the unbalance angel is easy to be located.
The filter has the sensitive feature, that will eliminate the out coming vibration influence.
Equipped with filter frequency check installement which can reserve the accuracy of filtering frequency.
Two magnifiers and two lifht meters indicate the unbalances of both left and right ends separately at same time.
Integrated circuit(IC)is adopted, assuring longer lift and greater reliability.

Model
W-103
Weight rang of workpiece
0.1 – 3 kg
Workpiece diameter
400 mm MAX
Journal Diameter
20 mm MAX
Distance between bearings
300 mm MAX
Balancing Speed
600 – 8,000 RPM
Precision 1 μ
Drive Motor 60 W Frequency speed
Weight
70 kg
