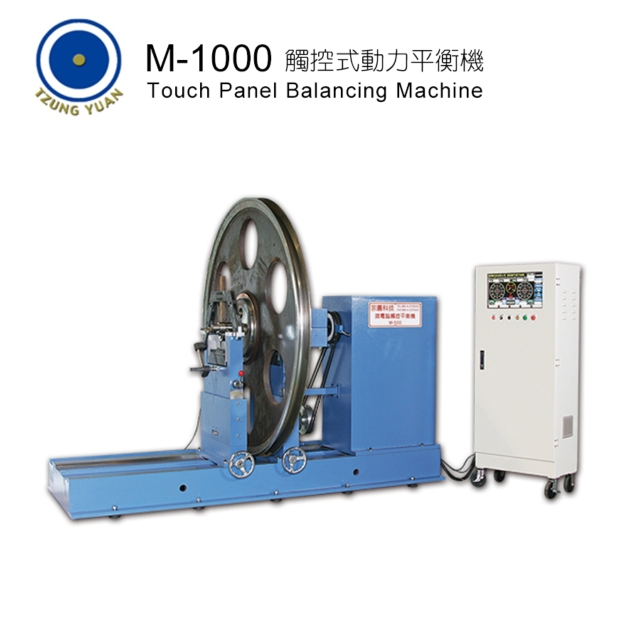

M1000 Touch Panel Balancing Machine
Hot- Model:
- M-1000
Detail Specifications / Descriptions
Application:
For the balance and correction of rotary components and Assemblies for Axis,
Glidewheel, Motor, Generators,Exhaust fans,Eengines, Agricultural Machinery,
Textile Machinery, Food processing machinery, Automobiles and Motorcycle.
| Features: | |
| ． | Man-machine interface touch operation. |
| ． | PLC control system. |
| ． | Human/machine interface for easy balance-weight testing, balance weight unit will besst as “gram”after testing. |
| ． | Monitor displance all sorts of setting and digitized imbal ance angles,weight,rotation speeds, and synchronous vector ray charts. |
| ． | Historical data can be done using USB storage function. |
| ． | Workpiece balance value can be preset w/ to enable indicate of finished-item standard qualification / disqualifi cation. |
Model | M-500 | M-1000 | M-5000 |
Weight range of workpiece | 5-500kg | 50-1000kg | 50-5000kg |
Workpiece diameter | 1500 mm | 2000 mm | |
Joint drive | 1300 mm | 1500 mm | |
Distance between bearings | 1500 mm | ||
Journal | 50-130 mm | 50-180 mm | 50-250 mm |
Vector scope measuring | 650-700 RPM | 650-800 RPM | 650 RPM |
Precision | G6.3 | G6.3 | G6.3 |
Drive motor | 15HP | 20HP | 30HP |
Screen | 22" Touch screen | ||
Laser Scanner | Scanner(Optional) | ||
