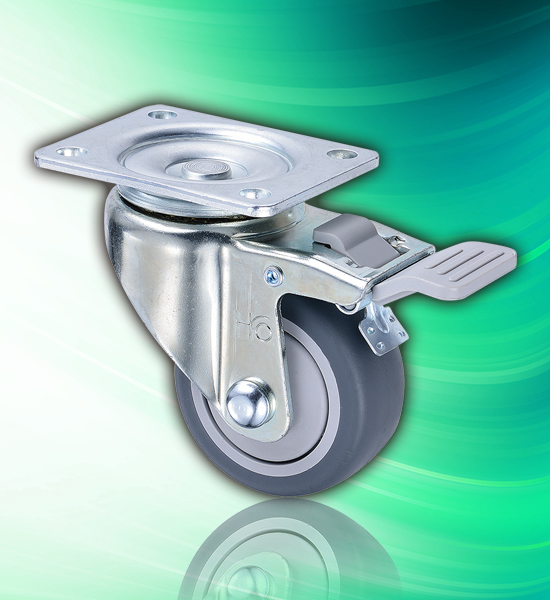

TPR Caster, Braking Type Hospital Beds 3" Wheels
Hot- Model:
- EB075-2-TPR
- Country of Origin:
- Taiwan
- Material:
- TPR (Thermoplastic Rubber)
Detail Specifications / Descriptions
Type:Front Total Lock Caster
Wheel Diameter(G) x Width:3x1¼ inch (75x32 mm)
Height(H):109 mm
Load Capacity:150 kg
Bolt Hole Center(AxB):53x71 mm
Plate Size(DxE):75x92 mm
Bolt Hole(P):Φ10
Bearing:#6002 Single Ball Bearing
Fork Structure:Pressed Steel；Zinc Plated
Eccentricity:32 mm
Wheel Core:Plastic Core
Weight:0.77 kg
Others:Plastic Wheel Cover
Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
Bearing: #6202 single ball bearing to improve the rolling.
Fork: Front Total Lock with top plate. Pressed steel and integrally formed. Zinc plated.
Plastic wheel covers to prevent the dust, water and other materials.
