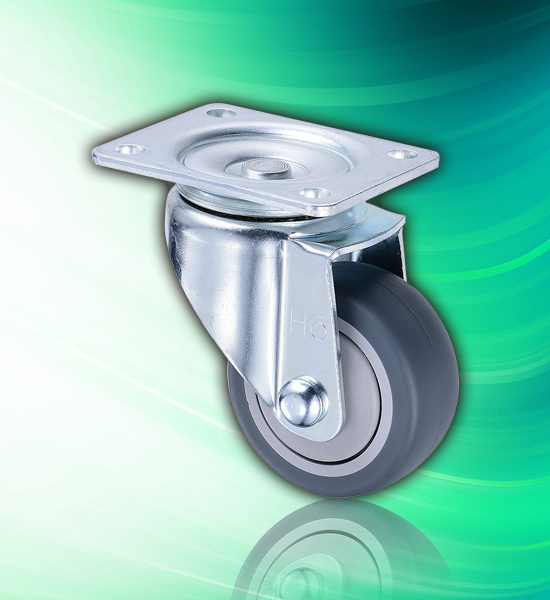

3 inch Wheel Cover TPR Small Medical Caster Wheels

3 inch Wheel Cover TPR Small Medical Caster Wheels

Hot
Model:
EB075-1-TPR
Country of Origin:
Taiwan
Material:
TPR (Thermoplastic Rubber)

Detail Specifications / Descriptions

Type:Swivel Caster
Wheel Diameter(G) x Width:3x1¼ inch (75x32 mm)
Height(H):109 mm
Load Capacity:150 kg
Bolt Hole Center(AxB):53x71 mm
Plate Size(DxE):75x92 mm
Bolt Hole(P):Φ10
Bearing:#6002 Single Ball Bearing
Fork Structure:Pressed Steel;Zinc Plated
Eccentricity:32 mm
Wheel Core:Plastic Core
Weight:0.71 kg
Others:Plastic Wheel Cover

Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
Bearing: #6202 single ball bearing to improve the rolling.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
Plastic wheel covers to prevent the dust, water and other materials.

3 inch Wheel Cover TPR Small Medical Caster Wheels
