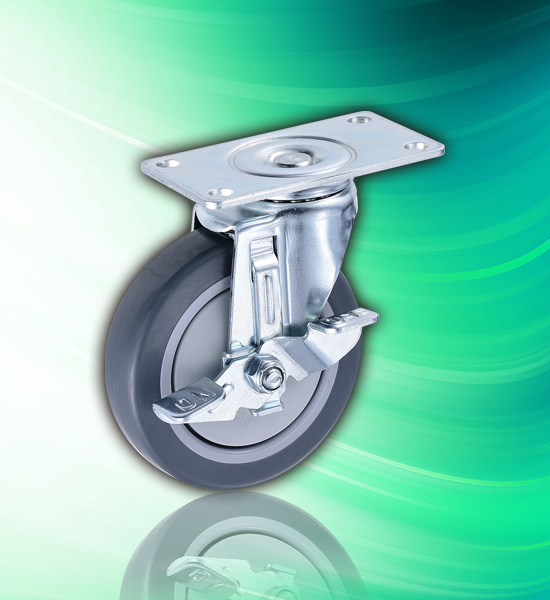

Braking TPR Caster, 4

Braking TPR Caster, 4" Light Duty Hospital Beds Wheels

Hot
Model:
BX415-TPR-2
Country of Origin:
Taiwan
Material:
TPR (Thermoplastic Rubber)

Detail Specifications / Descriptions

Type:Side Wheel Brake Caster
Wheel Diameter(G) x Width:4x1 inch (100x25 mm)
Height(H):123 mm
Load Capacity:150 kg
Bolt Hole Center(AxB):40x82 mm
Plate Size(DxE):58x100 mm
Bolt Hole(P):Φ9
Bearing:#6200 Single Ball Bearing
Fork Structure:Pressed Steel;Zinc Plated
Eccentricity:26 mm
Wheel Core:Plastic Core
Weight:0.67 kg

Wheel: Thermoplastic Rubber (TPR) which is quiet when moving and is suitable for medical, laboratory equipment.
Wheel Core: Plastic Core which is lightweight, economical and non-conductive.
Bearing: #6200 single ball bearing to improve the rolling.
Fork: Side Wheel Brake with top plate. Pressed steel and integrally formed. Zinc plated.
Plastic wheel covers to prevent the dust, water and other materials.

Braking TPR Caster, 4
