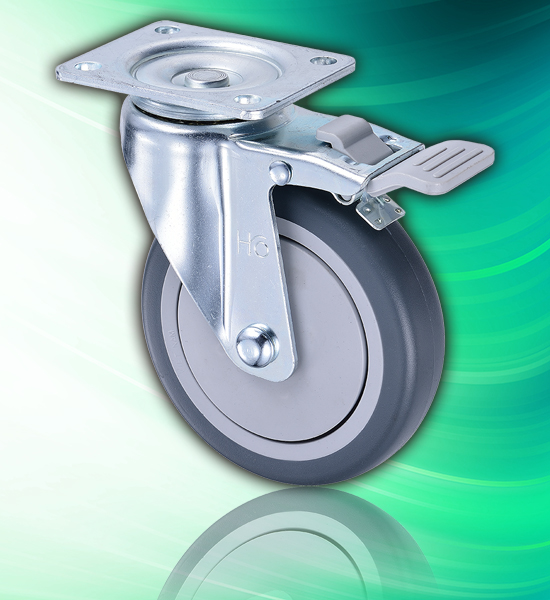

5" TPR Hospital Bed Swivel Silent Caster with Brake
Hot- Model:
- EB125-2-TPR
- Country of Origin:
- Taiwan
- Material:
- TPR (Thermoplastic Rubber)
Detail Specifications / Descriptions
Type:Front Total Lock Caster
Wheel Diameter(G) x Width:5x1¼ inch (125x32 mm)
Height(H):161 mm
Load Capacity:200 kg
Bolt Hole Center(AxB):53x71 mm
Plate Size(DxE):75x92 mm
Bolt Hole(P):Φ10
Bearing:#6202 Single Ball Bearing
Fork Structure:Pressed Steel；Zinc Plated
Eccentricity:32 mm
Wheel Core:Plastic Core
Weight:1.02 kg
Others:Plastic Wheel Cover
Wheel: Thermoplastic Rubber (TPR) which is quiet when moving and is suitable for medical, laboratory equipment.
Wheel Core: Plastic Core which is lightweight, economical and non-conductive.
Bearing: #6202 single ball bearing to improve the rolling.
Fork: Front Total Lock with top plate. Pressed steel and integrally formed. Zinc plated.
Plastic wheel covers to prevent the dust, water and other materials.
