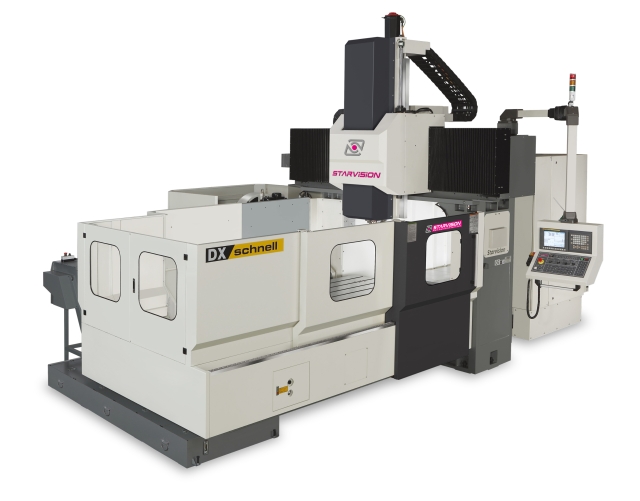

Linear Guideway Type Double Column Machining Center
- Model:
- DX Series
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Table size [mm] 2,000 – 4,000 x 1,400 / 1,700
Travel – Longitudinal – X axis [mm] 2,200 - 4,200
Travel – Cross – Y axis [mm] 1,600 / 2,000
Travel – Vertical – Z axis [mm] 800 / *1,000
Rapid feed rate (X - Y - Z) [m/min] 12 / 10 - 12 - 15
Spindle motor (30 min. rating) [kW] 22 / *26 / *37
Spindle speed (gear type) [rpm] 4,500 / *6,000 / *8,000
Spindle taper [-] BT-50 / ISO-50 / CAT-50
Tool storage capacity [-] 32 / *24 / *40 / *60
* Option
