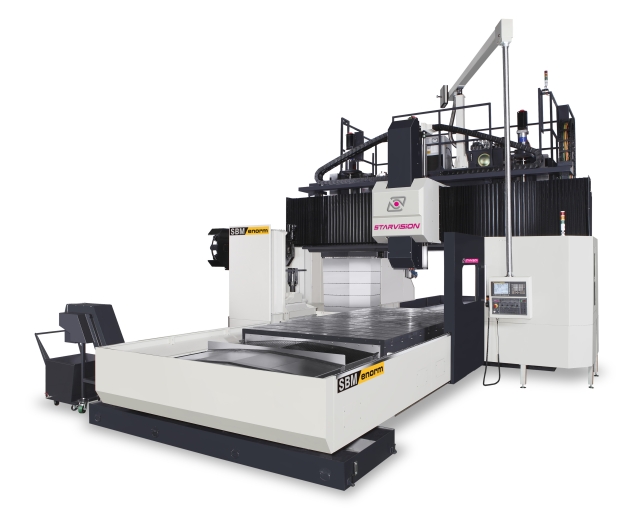

Crossbeam Moving Type Double Column Machining Center

Crossbeam Moving Type Double Column Machining Center

Model:
SBM Series
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Table size [mm] 4,000 - 10,000 x 2,000 / 2,400 / 2,800 / *3,500
Travel – Longitudinal – X axis [mm] 4,200 - 10,200
Travel – Cross – Y axis [mm] 3,000 / 3,500
Travel – Vertical – Z axis [mm] 1,000 / *1,200 / *1,500
Travel – Vertical – W axis [mm] 1,000 / *1,250 / *1,500
Rapid feed rate (X - Y - Z - W) [m/min] 10 / 8 - 10 - 12 - 2
Spindle motor (30 min. rating) [kW] 26 / *37
Spindle speed (gear type) [rpm] 4,200 / 4,500 / *6,000 / *8,000
Spindle taper [ - ] BT-50 / ISO-50 / CAT-50
Tool storage capacity [ - ] 32 / *24 / *40 / *60 / *90 / *120
* Option
