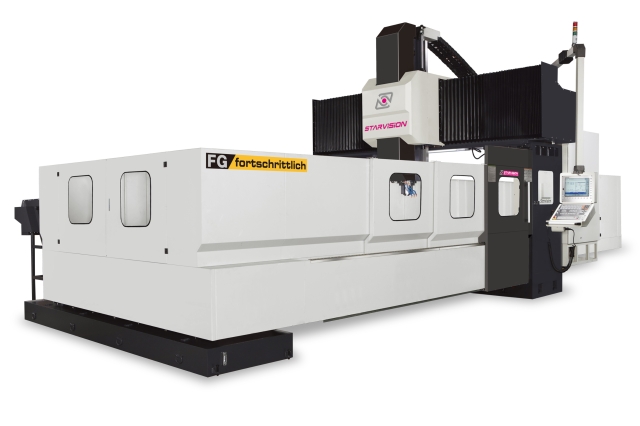

Linear Guideway Type Double Column Machining Center
- Model:
- FG Series
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Table size [mm] 3,000 - 10,000 x 2,400
Travel – Longitudinal – X axis [mm] 3,200 - 10,200
Travel – Cross – Y axis [mm] 2,600
Travel – Vertical – Z axis [mm] 1,000 / *1,200
Rapid feed rate (X - Y - Z) [m/min] 15 / 12 / 8 - 15 - 12
Spindle motor (30 min. rating) [kW] 22 / *26 / *37
Spindle speed (gear type) [rpm] 4,500 / *6,000 / *8,000
Spindle taper [ - ] BT-50 / ISO-50 / CAT-50
Tool storage capacity [ - ] 32 / *24 / *40 / *60 / *90 / *120
* Option
