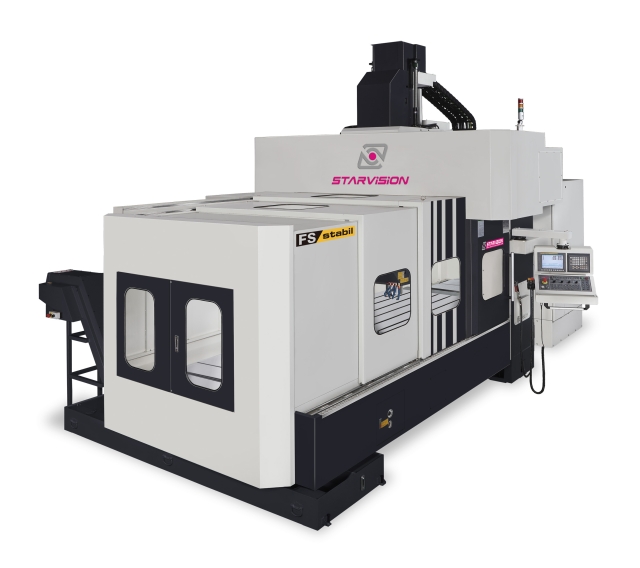

Boxway Type Double Column Machining Center
- Model:
- FS Series
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Table size [mm] 2,000 – 4,000 x 1,400 / 1,700
Travel – Longitudinal – X axis [mm] 2,200 – 4,200
Travel – Cross – Y axis [mm] 1,600 / 2,000
Travel – Vertical – Z axis [mm] 800 / *1,000
Rapid feed rate (X-Y-Z) [m/min] 12 / 10 – 12 – 15
Spindle motor (30 min. rating) [kW] 22 / *26 / *37
Spindle speed (gear type) [rpm] 4,500 / *6,000
Spindle taper [ - ] BT-50
Tool storage capacity [ - ] 32 / *24 / *40 / *60
* Option
