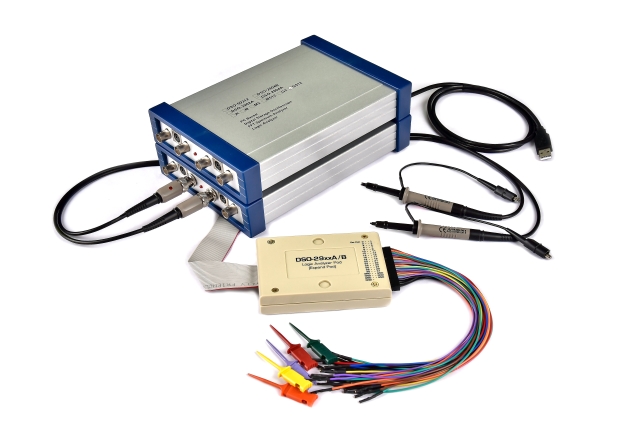

数位储存式示波器
- 产品型号:
- DSO-2908A-G
- 原产地:
- 台湾
详细规格及用途描述
PC Based USB Interface (DSO, Logic Analyzer, FFT Spectrum Analyzer)
Analog Channel : 8Ch Unit #1. (Ch.A1, Ch.A2, Ch A3, Ch A4).
Unit #2. (Ch.A1, Ch.A2, Ch A3, Ch A4).
Digital Channel : This Model do not support digital channel.
Trigger Levels : Universal 512 (DSO-2908A-G512, DSO-2908A-G2).
Trigger : Universal 512 Levels (DSO-2908A-G512, DSO-2908A-G2),
(Parallel, Serial, Pulse width, I²C, SPI, TV Horizontal.Synchronous..).
Trigger Qualify : 0, 1, X (don't care) settings for all digital channels.
Repetitive Mode : Up to 20GHz.
FFT Spectrum Analyzer : 125MHz (Fast Fourier Transform).
Electronic Counter : Max. 7 digital Resolution.
X-Y Plot : Allow to graph one channel to another.
Mathematics : +, -.
Multi-Window : Yes.
Operate : Mouse.
Memory :4Ch 2Mega Bytes (Scope). 8Ch 1Mega Bytes (Scope).
Input Impedance : 1MΩ/15pf (DSO).
Sensitivity : 10mv/div to 4v/div.
Sampling Rate : 4Ch 1Hz to 1GHz, 8Ch 1Hz to 500MHz.
Threshold Voltage : -1.8v to +4.5v.
External Clock : 0 to 100MHz 200KΩ/4pf, +/-50Vmax.
Power Supply : DC Adapter 5.4V/2.4A.x 2.
Net Weight : 3.6 KGS.
Size (Dimension) :
Two units DSO-2904A-G512 or DSO-2904A-G2 connect with one flat
Cable (26pin 2.0mm 5cm) shown as left photo It become one 8 Channels
Oscilloscope.
