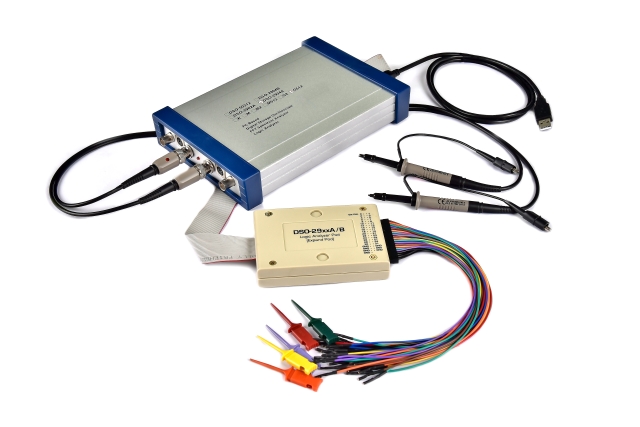

数位储存式示波器
- 产品型号:
- DSO-2904A-G
- 原产地:
- 台湾
详细规格及用途描述
PC Based USB Interface (DSO, Logic Analyzer, FFT Spectrum Analyzer).
Analog Channel : 4Ch (Ch.A1, Ch.A2, Ch.A3, Ch.A4).
Digital Channel : 8Ch/32Ch (D0 ~ D31) from Logic Analyzer Pod [Expand Pod].
( 8Ch:Sampling Rate 0 ~ 500MHz , 1M Bytes Memory).
( 32Ch:Sampling Rate 0 ~200MHz , 1M Bytes Memory).
Input Bandwidth : DSO (Ch.A1, Ch.A3 170MHz, Ch.A2, Ch.A4.125MHz),
Logic Analyzer (D0 ~ D7, 0 ~ 100MHz).
(D0 ~ D31, 0 ~ 10MHz).
Trigger : Universal 512 Levels (DSO-2904A-G512).
(Parallel, Serial, Pulse width, I²C, SPI, TV Horizontal Synchronous..).
Universal (Simple) 2 Levels (DSO-2904A-G2).
Trigger Qualify : 0, 1, X (don't care) settings for all digital channels.
Repetitive Mode : Up to 20GHz.
FFT Spectrum Analyzer : 125MHz (Fast Fourier Transform).
Electronic Counter : Max. 7 digital Resolution.
X-Y Plot : Allow to graph one channel to another.
Mathematics : +, -.
Multi-Window : Yes.
Operate : Mouse.
Memory : 2Ch 2Mega Bytes (Scope). 4Ch 1Mega Bytes (Scope).
32Ch 1Mega Bytes (Logic Analyzer).
Input Impedance : 1MΩ/15pf (DSO), 200KΩ/4p (Logic Analyzer).
Sensitivity : 10mv/div to 4v/div.
Sampling Rate : 2Ch 1Hz to 1GHz, 4Ch 1Hz to 500MHz.
Threshold Voltage : -1.8v to +4.5v.
External Clock : 0 to 100MHz 200KΩ/4pf, +/-50Vmax.
Power Supply : DC Adapter 6V/3A.
Net Weight : 1.8 KGS.
Size (Dimension) : 220mm x 142mm x 40mm (Aluminum Case).
