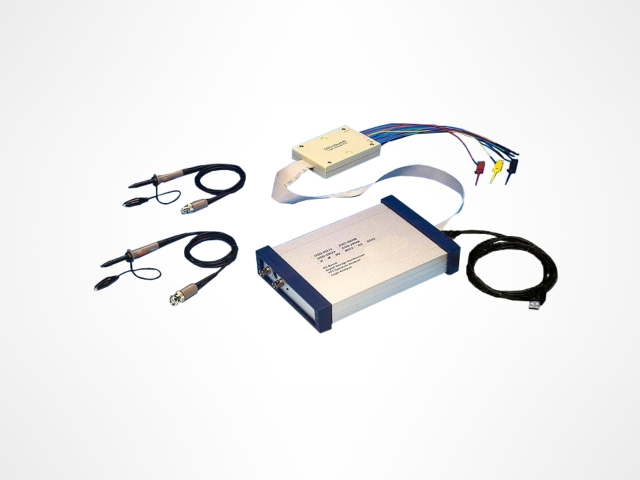

数位储存式示波器
- 产品型号:
- DSO-2902A-M
- 原产地:
- 台湾
详细规格及用途描述
PC Based USB Interface (DSO, Logic Analyzer, FFT Spectrum Analyzer).
Analog Channel : 2Ch (Ch.A1, Ch.A2).
Digital Channel : 4Ch/16Ch (D0 ~ D16) from Logic Analyzer Pod [Expand Pod].
( 4Ch:Sampling Rate 0 ~ 250MHz , 512K Bytes Memory).
( 16Ch:Sampling Rate 0 ~100MHz , 512K Bytes Memory).
Input Bandwidth : DSO (Ch.A1 125MHz, Ch.A2 60MHz).
Logic Analyzer (D0 ~ D3, 0 ~ 50MHz).
(D0 ~ D15, 0 ~ 10MHz).
DSO (125/60MHz), Logic Analyzer (50MHz).
Trigger Levels : Universal 512 (DSO-2902A-M512).
Universal 2 (DSO-2902A-M2).
Trigger : Universal 512 Levels (DSO-2902A-M512).
(Parallel, Serial, Pulse width, I²C, SPI, TV Horizontal Synchronous..).
Universal (Simple) 2 Levels (DSO-2902A-M2).
Trigger Qualify : 0, 1, X (don't care) settings for all digital channels.
Repetitive Mode : Up to 20GHz.
FFT Spectrum Analyzer : 125MHz (Fast Fourier Transform).
Electronic Counter : Max. 7 digital Resolution.
X-Y Plot : Allow to graph one channel to another.
Mathematics : +, -.
Multi-Window : Yes.
Operate : Mouse.
Memory : 1Ch 1Mega Bytes (Scope), 2Ch 512K Bytes (Scope).
4Ch 512K Bytes (Logic Analyzer).
Input Impedance : 1MΩ/15pf (DSO), 200KΩ/4p (Logic Analyzer).
Sensitivity : 10mv/div to 4v/div.
Sampling Rate : 1Ch 1Hz to 500MHz, 2Ch 1Hz to 250MHz.
Threshold Voltage : -1.8v to +4.5v.
External Clock : 0 to 100MHz 200KΩ/4pf, +/-50Vmax.
Power Supply : DC Adapter 5.4V/2.4A.
Net Weight : 1.4 KGS.
Size (Dimension) : 220mm x 142mm x 40mm (Aluminum Case).
