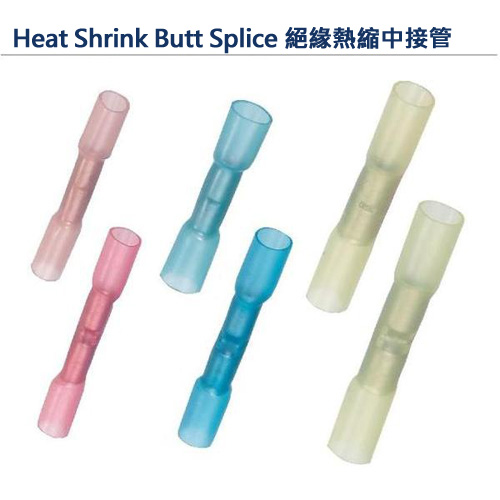

Heat Shrink Butt Connector – Water Resistance Butt Connector

Specifications:
1.Shrink ratio: 2:1 - Operating temperature: -55 ~ 105 degrees Celsius (-67 ~ 221 Fahrenheit)
2.Minimum shrink temperature: 130 degrees Celsius (266 Fahrenheit)
3.Electric current rating: AWG 22 -18: 17 A, AWG 16 -14: 30 A, AWG 12 -10: 50 A - Voltage resistance rating: 600 V
4.Temperature resistance rating: 105 degrees Celsius. (221 Fahrenheit)
5.Approval: RoHS
6.OEM / ODM products

Features:
1.Polyolefin heat shrink tubing is popular for the excellent electrical insulation - Heat shrink connectors should be installed where you want to keep water, salt and other corrosive materials out, and the electricity in. They are inner-adhesive and translucent to the industry standard wire range. It is the excellent wiring solution for automotive and marine wiring application.
2.Copper tubular brings excellent conductivity character. - A ductile metal with high thermal and electrical conductivity. UTA standard butt splices use the ETP (Electrolytic Tough Pitch) and the DHP (Phosphorus-Deoxidized, High Residual P) grade. Each terminal is tempered well for easy installation.
3.Seamless type butt splice - All-direction crimping. Reliable strength gets the better of seam butt splice.
4.Excellent chamfer treatment at both entries - Free from burrs, Quicker wire insertion faster and easier.
5.Quality tin plating. - Non-toxic, ductile and corrosion resistant. The excellent ductility of tin allows a tin coated base metal sheet to be formed into a variety of shapes without damage to the surface tin layer. It provides sacrificial protection for copper, nickel and other non-ferrous metals,
