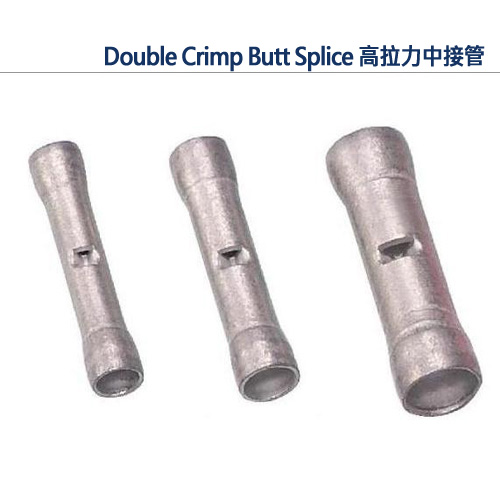

Double Crimp Butt Splice - Non-Insulated Double Crimp Butt Connector, Seamless Double Crimp Terminal

Double Crimp Butt Splice - Non-Insulated Double Crimp Butt Connector, Seamless Double Crimp Terminal

Model:
DB
Country of Origin:
Taiwan
Material:
Copper
Color:
Tin

Detail Specifications / Descriptions

Specifications:
1.Electric current rating: AWG 22 -18: 17 A, AWG 16 -14: 30 A, AWG 12 -10: 50 A
2.US military standard compliant.
3.Approval: RoHS
4.OEM / ODM products

Features:
1.Most Economic way to meet high wire pull strength requirement. - One butt instead of conventional 3 pcs connector. Free from the loosen ferrules quality issue.
2.Copper tubular brings excellent conductivity character. - A ductile metal with high thermal and electrical conductivity. UTA standard butt splices use the ETP (Electrolytic Tough Pitch) and the DHP (Phosphorus-Deoxidized, High Residual P) grade. Each terminal is tempered well for easy installation.
3.Seamless type butt splice - All-direction crimping. Reliable strength gets the better of seam butt splice.
4.Excellent chamfer treatment at both entries - Free from burrs, Quicker wire insertion faster and easier.
5.Quality tin plating. - Non-toxic, ductile and corrosion resistant. The excellent ductility of tin allows a tin coated base metal sheet to be formed into a variety of shapes without damage to the surface tin layer. It provides sacrificial protection for copper, nickel and other non-ferrous metals,

Double Crimp Butt Splice - Non-Insulated Double Crimp Butt Connector, Seamless Double Crimp Terminal
