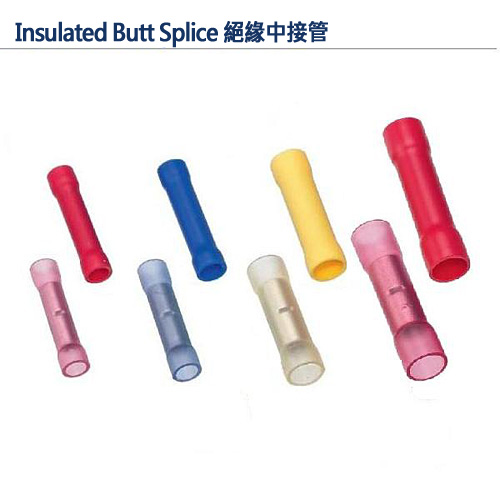

Butt Connector – Insulated Butt Splice, Seamless Crimp Terminal
- Model:
- VB NB
- Country of Origin:
- Taiwan
- Material:
- PVC and copper, nylon and copper
- Color:
- Red, blue, yellow
Detail Specifications / Descriptions
Specifications:
1.Electric current rating: AWG 22 -18: 17 A, AWG 16 -14: 30 A, AWG 12 -10: 50 A - Voltage resistance rating: 300 V
2.Temperature resistance rating: 75 degrees Celsius. (167 Fahrenheit)
3.Approval: RoHS, UL (File No. E155361)
4.OEM / ODM products
Features:
1.Copper tubular brings excellent conductivity character. - A ductile metal with high thermal and electrical conductivity. UTA standard butt splices use the ETP (Electrolytic Tough Pitch) and the DHP (Phosphorus-Deoxidized, High Residual P) grade. Each terminal is tempered well for easy installation.
2.Seamless type butt splice - All-direction crimping. Reliable strength gets the better of seam butt splice.
3.Excellent chamfer treatment at both entries - Free from burrs, Quicker wire insertion faster and easier.
4.Quality tin plating. - Non-toxic, ductile and corrosion resistant. The excellent ductility of tin allows a tin coated base metal sheet to be formed into a variety of shapes without damage to the surface tin layer. It provides sacrificial protection for copper, nickel and other non-ferrous metals,
5.Military standard compliant.
