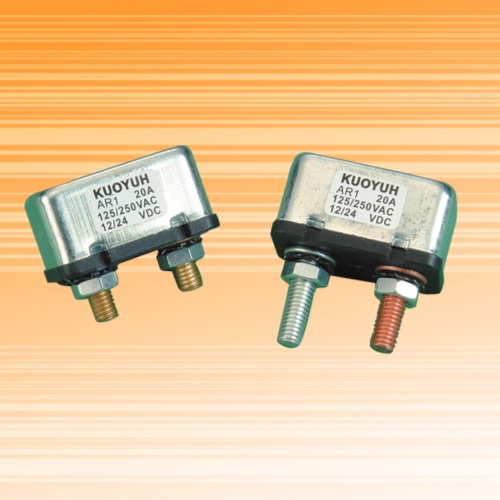

AR2 Series
Detail Specifications / Descriptions
Engineering Information:
Rating : 3 — 25Amp . Input Power :125/250Vac 50Vdc 50/60Hz . Interrupting Capacity:1,000Amp× 125Vac
200Amp×250Vac. Dielectric Strength : 1,500Vac 1 minute. Resettable Overload Capacity : 10 times rated
current . Voltage Drop: Less than 0.25V . iNSUIATION rESISTANCE : >500 Meagaohms .Temperature Rise
at Terminal Black : Less than 65 ℃ at 100 % of rated current applied continuously at 25℃ .
Contact Endurance : 125Vac × 150 % of rated current >500 Cycles.
Calibration (at 25℃)
100%of rated current :hold,No-Trip
150%of rated current :Trip in one Hour
200%of rated current :Within 40 seconds
300% of rated current :Within 10 Trip
