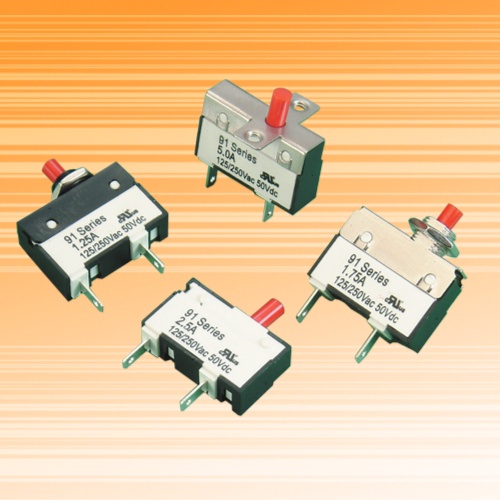

91 Series
Detail Specifications / Descriptions
Specification：
Rating :1 — 10Amp . Input Power :125/250Vac 50Vdc 50-60Hz . Interrupting Capacity:1,000Amp× 125Vac
20Amp×250Vac. Dielectric Strength : 1,500Vac 1 minute. Resettable Overload Capacity : 6 times rated
current . Voltage Drop: Less than 0.25V . Insuiation Resistance : >500 Meagaohms .Reset Time: Push To
Reset(Within 20 seconds)Temperature Rise at Terminal Black : Less than 65 ℃ at 100 % of rated current
applied continuously at 25℃ .
Contact Endurance : 125Vac × 150 % of rated current >500 Cycles.
Calibration (at 25℃)
100%of rated current :hold,No-Trip
150%of rated current :Trip in one Hour
200%of rated current :3-30seconds Trip
300% of rated current :0.5-4.0 seconds Trip
