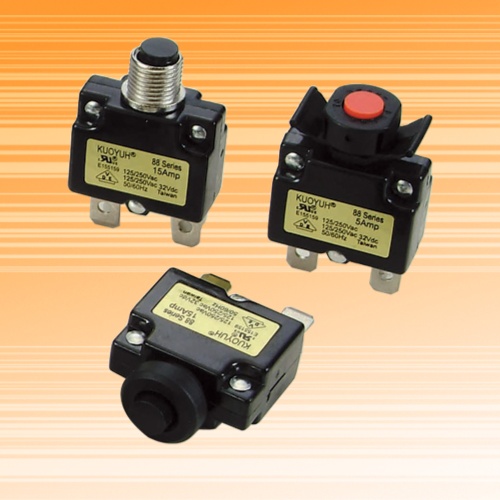

88 Series

88 Series

Hot

Detail Specifications / Descriptions

Specification:
Rating : 3 — 25Amp . Input Power :125/250Vac 50Vdc 50-60Hz . Interrupting Capacity:1,000Amp× 125Vac

20Amp×205Vac. Dielectric Strength : 1,500Vac 1 minute. Resettable Overload Capacity : 10 times rated

current . Voltage Drop: Less than 0.25V . iNSUIATION rESISTANCE : >500 Meagaohms .Temperature Rise

at Terminal Black : Less than 65 ℃ at 100 % of rated current applied continuously at 25℃ . Contact

Endurance : 125Vac × 150 % of rated current >500 Cycles.

Calibration (at 25℃)

100%of rated current :hold,No-Trip

150%of rated current :Trip in one Hour

200%of rated current :5-25 seconds Trip

300% of rated current :1.6-4.8 seconds Trip

88 Series
