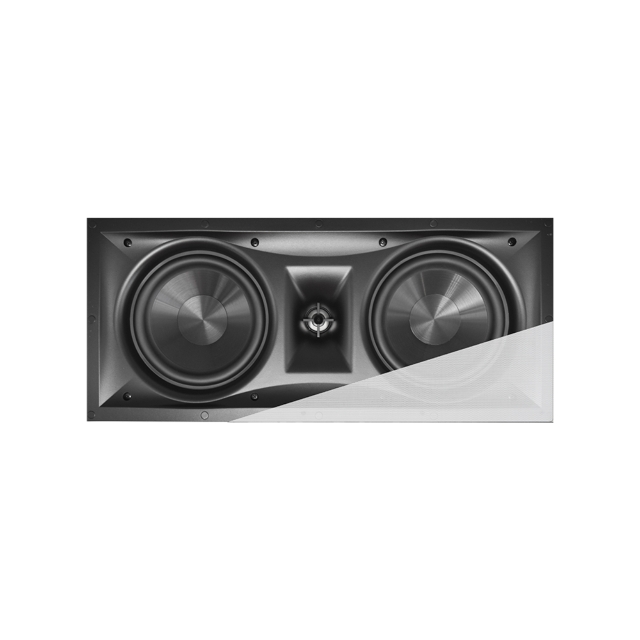

In-Wall speaker
- Model:
- IW-630LCR/IW-830LCR
- Country of Origin:
- China
- Material:
- ABS
- Color:
- Black
Detail Specifications / Descriptions
Tweeter：1" (25 mm) Titanium dome
Woofer︰6.5" x2(165 mm) | 8" x2 (203 mm)Graphite Cone, Rubber Surround
Frequency Range±3︰50 Hz-20k Hz | 45 Hz-20k Hz
Power Handing RMS： 80 W program ,40 W (IEEE 219 ) │100 W program ,50 W (IEEE 219 )
Sensitivity︰87dB
Impedance︰8Ω
Termination︰Standard pressed connector
Attachment︰Cut out template grille
Dimensions (H*W*D)︰100mm x 481mm x 210mm｜100mm x 556mm x 255mm
Cut out diameter：18.03’’ x7.40” (458mm x 188mm) | 21.02’’ x9.17” (534mm x 233mm)
Housing Material︰ABS
