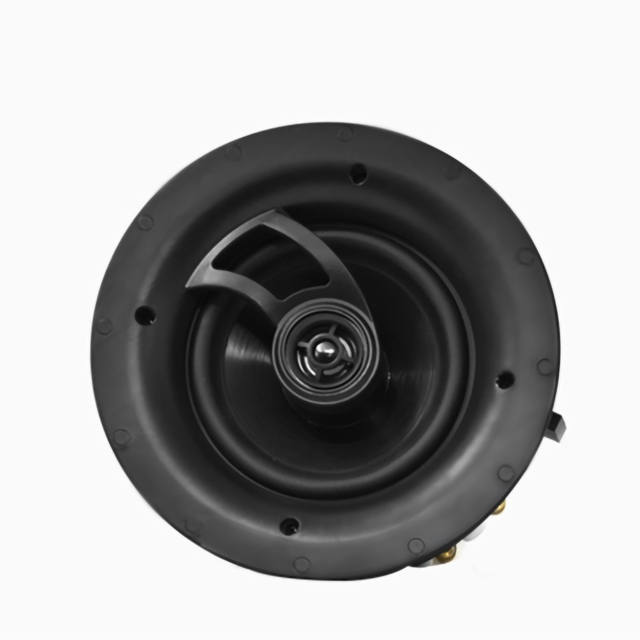

In-Ceiling speaker with back cover
- Model:
- IC-52C/62C/82C
- Country of Origin:
- China
- Material:
- ABS
- Color:
- Black/White
Detail Specifications / Descriptions
Tweeter：1" Silk soft dome
Woofer：5" (125mm) Graphite cone, Rubber Surround｜6" (165mm) Graphite cone, Rubber Surround｜8" (203mm) Graphite cone, Rubber Surround
Frequency Range+/-3：55 Hz-20k Hz｜60 Hz-20k Hz｜43 Hz-20k Hz
Power Handing RMS：60 W program ,30 W (IEEE 219 )｜80 W program ,40 W (IEEE 219 )｜100 W program ,50 W (IEEE 219 )
Output SPL：87dB｜87dB｜87dB
Taps：8Ω 30W/15W/7.5W/3.75W｜8Ω 40W/20W/10W/5W｜8Ω 50W/25W/12.5W/6.25W
Impedance：8Ω
Dimension φ*H(D)：212mm x104mm｜248.5mm x 108mm｜285.5mm x121mm
Cut Out Diameter：7.08” (180mm)｜8.23” (209mm)｜9.8” (249mm)
Attachment：Cut out template Grille
Material：ABS
