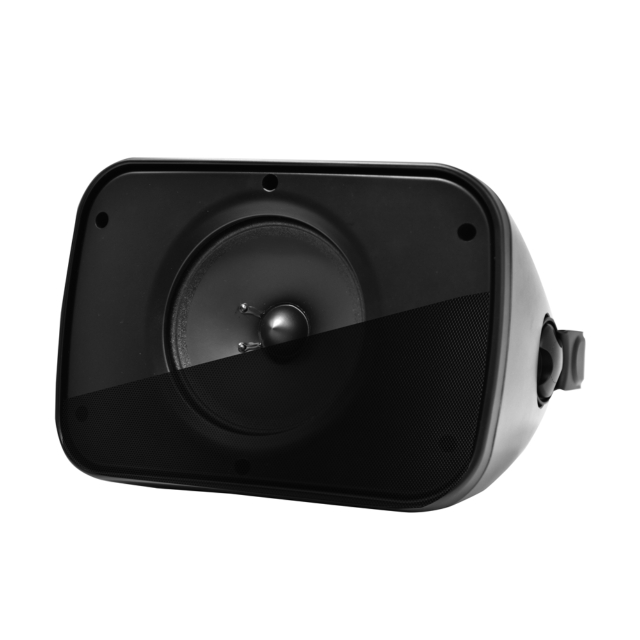

X-ONE IP66 waterproof wall mount full range speaker
- Model:
- DC-03-B5/B6/B8
- Country of Origin:
- China
- Material:
- ABS
- Color:
- Black/White
Detail Specifications / Descriptions
Woofer：5" (125 mm) ｜ 6.5" (165 mm) ｜ 8" (203 mm) Paper Cone, Cloth Surround full frequency speaker
Frequency Range±3：95 Hz-20k Hz｜90 Hz-20k Hz｜ 45 Hz-20k Hz
Power Handing RMS：80 W program ,40 W (IEEE 219 )｜120 W program ,60 W (IEEE 219 )｜140 W program ,70 W (IEEE 219 )
Sensitivity： 86dB｜87dB｜86dB
Impedance：8Ω
Taps：8Ω,100V/40W, 20W,10W, 5W｜8Ω,100V/60W,30W, 15W,7.5W ｜8Ω,100V/70W,35W, 17.5W,8.75W
Termination：Pluggable Terminal Blocks
Attachment：Brackets, Grille
Dimensions (H*W*D)：275mm x 170mm x 168mm｜285mm x 200mm x 195mm｜380mm x 249.5mm x 280mm
Certifications：IP66
Housing Material：ABS
