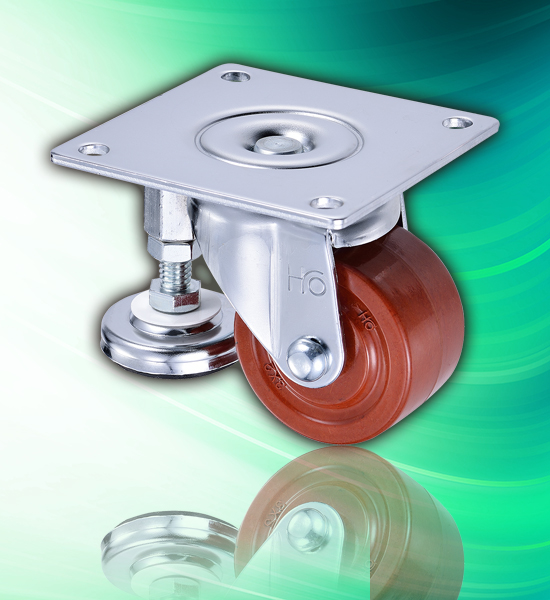

3" Top Plate Phenolic Leveling Height Adjustable Machine Caster
Hot- Model:
- T32AJ-PHR
- Country of Origin:
- Taiwan
- Material:
- Phenolic Resin
Detail Specifications / Descriptions
Type:Adjustable Caster
Wheel Diameter(G) x Width:3x2 inch (75x50 mm)
Height(H):107/122 mm
Load Capacity:300 kg
Bolt Hole Center(AxB):95x95 mm
Plate Size(DxE):120x120 mm
Bolt Hole(P):Φ11
Bearing:Roller Bearing
Fork Structure:Pressed Steel；Zinc Plated
Eccentricity:29 mm
Wheel Core:1.55 kg
Leveling Feet Spec.:1/2x 60 mm/ Zinc Plated
Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
High temperature resistance: -20~+170℃
Fork: Chrome plated. Spacer is made of grease resistance rubber which is anti-slippery, shock absorbing and can adjust the level.
Bearing: Roller Bearing- increases the load capacity.
