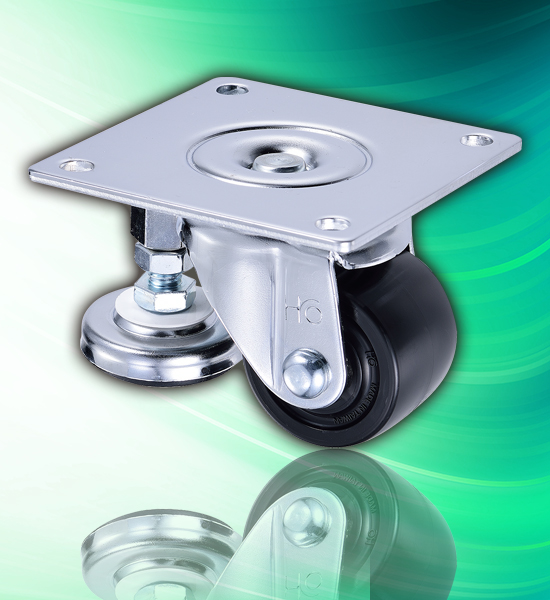

2.5" Cheap Scaffolding Caster Wheel with Adjustable Height
Hot- Model:
- A252AJ-NLS/ A252AJ-NLR/ A252AJ-NLP
- Country of Origin:
- Taiwan
- Material:
- Nylon
Detail Specifications / Descriptions
Type: Adjustable Caster
Wheel Diameter x Width: 2½x2 inch (62x50 mm)
Height: 92/107 mm
Load Capacity: 300 kg
Bolt Hole Center: 95x95 mm
Plate Size: 120x120 mm
Bolt Hole: Φ11
Bearing: Plain and Sleeve Bearing/ Roller Bearing/ #6201 Double Ball Bearings
Fork Structure: Pressed Steel；Chrome Plated
Eccentricity: 28 mm
Wheel Core: 1.2 kg/ 1.22 kg/ 1.2 kg
Leveling Feet Spec.: TΦ 1/2x 50 mm/ Zinc Plated
1. Wheel: High grade of nylon wheel, which is injection molding, with the features of wear, moisture, corrosion resistance and high load capacity.
2. Fork: Chrome plated. Spacer is made of grease resistance rubber which is anti-slippery, shock absorbing and can adjust the level.
3. Bearing: Plain and sleeve bearing- strengthen the protection between the axis and hub.
4. Bearing: Roller Bearing- increases the load capacity.
5. Bearing: Double ball bearings- #6201, improve the rollability.
