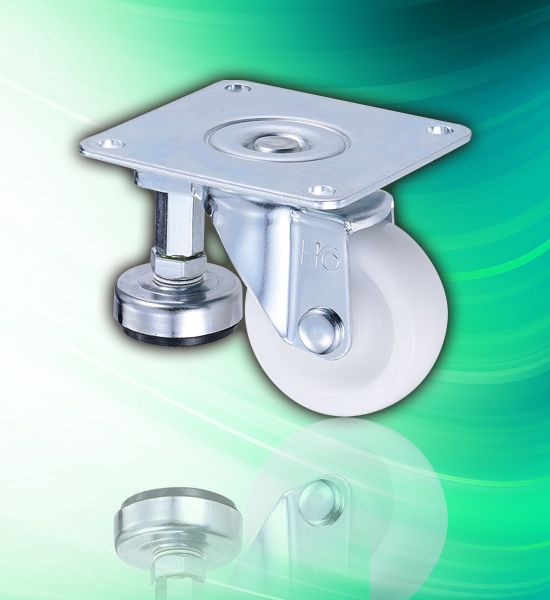

High Grade 2.5-inch PP Level Adjustable Caster
Hot- Model:
- B4AJ-W
- Country of Origin:
- Taiwan
- Material:
- PP (Polypropylene)
Detail Specifications / Descriptions
Type: Adjustable Caster
Wheel Diameter x Width: 2½x1 inch (63x25 mm)
Height: 85/95 mm
Load Capacity: 150 kg
Bolt Hole Center: 75x75 mm
Plate Size: 93x93 mm
Bolt Hole: Φ8.6
Bearing: Plain and Sleeve Bearing
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 28 mm
Wheel Core: 0.51 kg
Leveling Feet Spec.:TΦ M10x 1.5 mmx 38 mm/ Zinc Plated
1. Wheel: High Impact plastic wheel, resistant to humidity, corrosion.
2. Fork: Zinc plated. Spacer is made of grease resistance rubber which is anti-slippery, shock absorbing and can adjust the level.
3. Bearing: Plain and sleeve bearing- strengthen the protection between the axis and hub.
