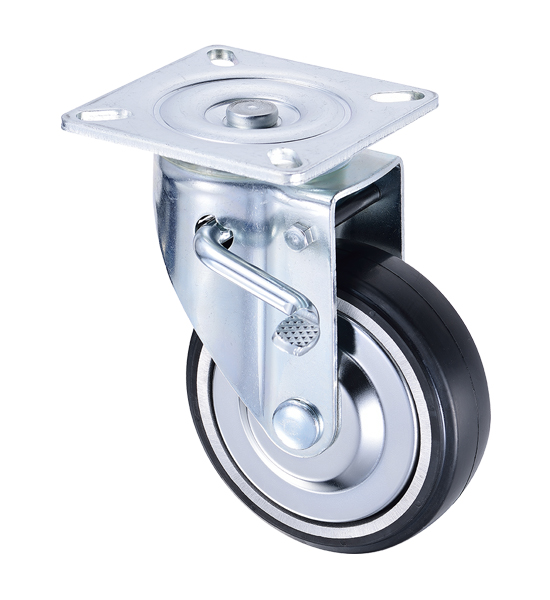

125mm Japan Holt Center Trolley Rubber Wheel with Brake
- Model:
- BX125BS-HA
- Country of Origin:
- Taiwan
- Material:
- Elastic Rubber
Detail Specifications / Descriptions
Type: Side Total Lock Caster
Wheel Diameter x Width: 5x1½ inch (125x38 mm)
Overall Heigh)t: 178 mm
Load Capacity: 300 kg
Bolt Hole Center: 85x85 mm
Plate Size: 110x110 mm
Bolt Hole: Φ11x21
Wheel Bearing: #6202 Double Ball Bearings
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 42 mm
Wheel Core: Aluminum Core
Weight: 2.3 kg
Others: Steel Wheel Cover
1. Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
3. Bearing: #6202 double ball bearings to enhance the rotation.
4. Fork: Side Iron Bar brake pedal, Total Lock. Pressed steel and integrally formed. Zinc plated.
5. Others: Steel wheel covers to prevent the dust, water and other materials.
