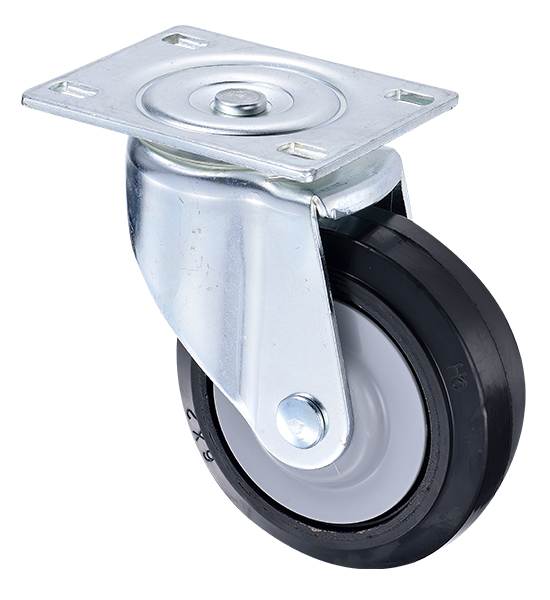

6 inch Cast Iron Core Rubber Heavy Industrial Trolley Wheels
- Model:
- A62SW-HS
- Country of Origin:
- Taiwan
- Material:
- Elastic Rubber
Detail Specifications / Descriptions
Type: Swivel Caster
Wheel Diameter x Width: 6x2 inch (150x50 mm)
Overall Height: 192 mm
Load Capacity: 400 kg
Bolt Hole Center: 77x112 mm
Plate Size: 113x142 mm
Bolt Hole: Φ12x20
Wheel Bearing: #6203 Double Ball Bearings
Fork Structure: Pressed Steel;Zinc Plated
Eccentricity: 55 mm
Wheel Core: Cast Iron Core
Weight: 4 kg
Others: Plastic Wheel Cover
1. Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Nylon Core to increase the load capacity and the stability when moving.
3. Bearing: #6202 double ball bearings and sleeve bearings to improve the rolling and stability.
4. Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
