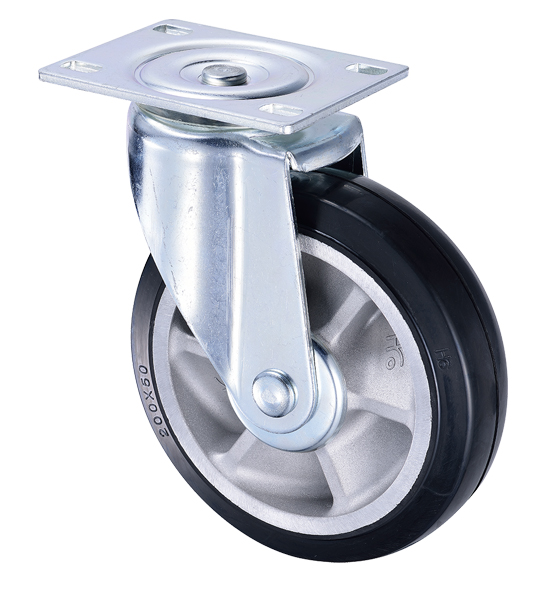

8 inch Aluminum Rim Rubber Heavy Duty Swivel Caster Wheels
- Model:
- A82SW-HA
- Country of Origin:
- Taiwan
- Material:
- Elastic Rubber
Detail Specifications / Descriptions
Type: Swivel Caster
Wheel Diameter x Width: 8x2 inch (200x50 mm)
Overall Height: 242 mm
Load Capacity: 450 kg
Bolt Hole Center: 77x112 mm
Plate Size: 113x142 mm
Bolt Hole: Φ12x20
Wheel Bearing: #6303 Double Ball Bearings
Fork Structure: Pressed Steel;Zinc Plated
Eccentricity: 55 mm
Wheel Core: Aluminum Core
Weight: 4.198 kg
Others: Steel Wheel Cover
1. Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Aluminum Turbine Core enhances the load capacity and offers the better rollability.
3. Bearing: #6303 double ball bearings to enhance the rotation.
4. Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
5. Others: Steel wheel covers to prevent the dust, water and other materials.
