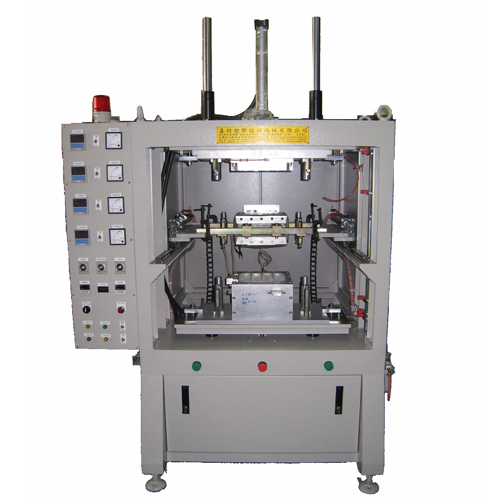

Hydraulic Hot-plate Plastic Welder

Features:
‧Consistent operating pressure without typical air compression issues
‧High-low pressure activated hydraulic cylinder
‧Hydraulic cylinder can be slowed, pressure-reduced when hot platens contact items to be welded
‧Buffer gap for moving hot platens is adjustable depending on mold weight, minimizing vibration during operation
‧Hot platens move on high-precision linear slide
‧Auto-return of hydraulic cylinder when power OFF prevents deformation of upper and lower platens due to prolonged thermal contact
Functions:
‧ Platens are heated to melt surfaces of items to be welded for pressure joining
‧ Pressurized joining seals two surfaces and can achieve air and water-tightness
‧ Suitable for plastic items that are difficult to weld or can’t be ultrasonically welded as
large or asymmetrical items
Sample products: automotive taillights, turn signals, third brake lamps, auxiliary radiators, air filters, carburetors, detergent holders in washers, vacuum cleaners and float balls.




Model No.
SH7545-2H-ON
SH7545-2H-OD
SH7545-2H-OC
SH7545-2H-OMM


Attachments


Operational Mode
Thermal Platen
Pneumatic
●
●
●
●


Upper & Lower Platens
Hydraulic
●
●
●
●


Clamping Mode
Thermal Platen
C Clamp
●
●




Upper Platen
Clamp
●
●
●
●


Swing Clamp Cylinder






Lower Platen
Clamp
●
●




Swing Clamp Cylinder


●
●


Circuit Control
Relay
●
●




PLC


●
●


Thermometer
4 sets
(Alarms Included)
●





8 sets
(Alarms Included)

●
●
●


Vacuum Detector

●
●
●


Air Detector
●
●
●



Thermal-Platen Retrieval Buffer
●
●
●
●


Auto-return of cylinders
●
●
●
●


Manual / Automatic Fixture

●
●
●


Protection
Infrared Photoelectric Detector


●



Air-Activated PC Door

●

●


Human-Machine Interface



●


Hydraulic Motor
2 HP
2 HP
2 HP
2 HP


Electric current (Thermal Platen Excluded)
5 A
5 A
5 A
5 A


Max. Current Per Display
30 A
30 A
30 A
30 A


Max. Operation Area
750 x 450 x 800
750 x 450 x 800
750 x 450 x 800
750 x 450 x 800


Max. Mold Spec.
600 x 300 x 200
600 x 300 x 200
600 x 300 x 200
600 x 300 x 200


Min. Welding Length
180 mm
180 mm
180 mm
180 mm


Machine Dimensions
2220 x 1740 x 1560
2220 x 1740 x 1560
2220 x 1740 x 1560
2220 x 1740 x 1560


Crate Dimensions
2420 x 1740 x 1560
2420 x 1740 x 1560
2420 x 1740 x 1560
2420 x 1740 x 1560


N.W.
1100 kg
1100 kg
1100 kg
1100 kg


G.W.
1300 kg
1300 kg
1300 kg
1300 kg




Code Descriptions
‧O: Hydraulic ‧N: Standard ‧C: Clamp ‧D: Safety door ‧MM: Human-machine interface
