Model for Dashboards

Model for Dashboards

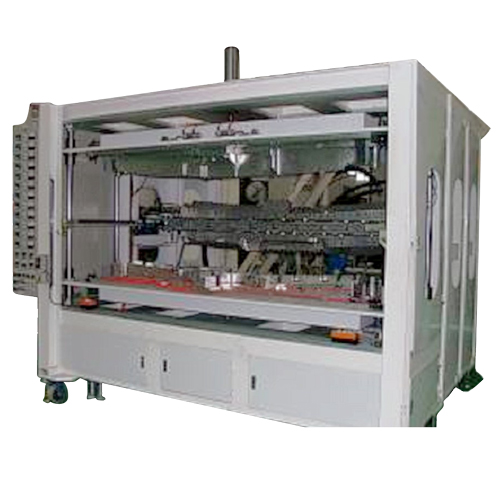

Model:
SH23090-2H-Oil

Detail Specifications / Descriptions

Features:
‧Consistent operating pressure without typical air compression issues
‧High-low pressure activated hydraulic cylinder
‧Hydraulic cylinder can be slowed, pressure-reduced when hot platens contact items to be welded
‧Buffer gap for moving hot platens is adjustable depending on mold weight, minimizing vibration during operation
‧Hot platens move on high-precision linear slide
‧Auto-return of hydraulic cylinder when power OFF prevents deformation of upper and lower platens due to prolonged thermal contact
Functions:
‧ Platens are heated to melt surfaces of items to be welded for pressure joining
‧ Pressurized joining seals two surfaces and can achieve air and water-tightness
‧ Suitable for plastic items that are difficult to weld or can’t be ultrasonically welded as
large or asymmetrical items
Sample products: pallets, auto dashboards etc.




Model No.
SH23090-ON
SH23090-OCL
SH23090-OMM


Attachments


Operational Mode
Thermal Platen
Pneumatic





Operation of Upper and Lower Platens
Hydraulic





Clamping Mode
Thermal Platen
C Clamp












Upper Platen
Clamp





Swing Clamp Cylinder





Lower Platen
Clamp





Swing Clamp Cylinder





Circuit Control
Relay





PLC





Thermometer
12 sets(Alarms Included)





Upper-Platen Lock





Vacuum Detector





Air Detector





Thermal-Platen Retrieval Buffer





Auto-return of cylinders





Manual / Automatic Fixture





Protection
Infrared Photoelectric Detector





Air-Activated PC Door





Human-Machine Interface





Hydraulic Motor
7.5 HP
7.5 HP
7.5 HP


Electric current (Thermal Platen Excluded)
15 A
15 A
15 A


Max. Current Per Display
30 A
30 A
30 A


Max. Operation Area
2300 x 700 x 1050
2300 x 700 x 1050
2300 x 700 x 1050


Max. Mold Spec.
2100 x 550 x 250
2100 x 550 x 250
2100 x 550 x 250


Min. Welding Length
300 mm
300 mm
300 mm


Machine Dimensions
3280 x 2575 x 2750
3280 x 2575 x 2750
3280 x 2575 x 2750


Crate Dimensions





N.W.
4180 kg
4180 kg
4180 kg


G.W.








Code Descriptions
‧O: Hydraulic ‧N: Standard ‧C: Clamp ‧D: Safety door ‧MM: Human-machine interface
.
