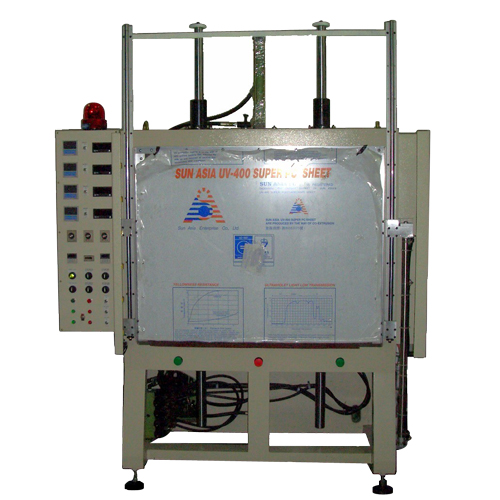

Hydraulic Hot-plate Plastic Welder
Detail Specifications / Descriptions
Features:
‧Consistent operating pressure without typical air compression issues
‧High-low pressure activated hydraulic cylinder
‧Hydraulic cylinder can be slowed, pressure-reduced when hot platens contact items to be welded
‧Buffer gap for moving hot platens is adjustable depending on mold weight, minimizing vibration during operation
‧Hot platens move on high-precision linear slide
‧Auto-return of hydraulic cylinder when power OFF prevents deformation of upper and lower platens due to prolonged thermal contact
Functions:
‧ Platens are heated to melt surfaces of items to be welded for pressure joining
‧ Pressurized joining seals two surfaces and can achieve air and water-tightness
‧ Suitable for plastic items that are difficult to weld or can’t be ultrasonically welded as
large or asymmetrical items
Sample products: automotive taillights, turn signals, third brake lamps, air filters and air-inlet tubes.
Model No.
SH12045-ON
SH12045-OCD
SH12045-OMM
Attachments
Operational Mode
Thermal Platen
Pneumatic
●
●
●
Upper & Lower Platens
Hydraulic
●
●
●
Clamping Mode
Thermal Platen
C Clamp
●
●
●
Swing Clamp Cylinder
Upper Platen
Clamp
●
●
●
Swing Clamp Cylinder
Lower Platen
Clamp
●
●
●
Swing Clamp Cylinder
Circuit Control
Relay
●
PLC
Optional
●
Thermometer
4 sets
(Alarms Included)
●
●
8 sets
(Alarms Included)
●
Upper-Platen Lock
●
●
Vacuum Detector
●
●
Air Detector
●
●
●
Thermal-Platen Retrieval Buffer
●
●
●
Auto-return of cylinders
●
●
●
Manual / Automatic Fixture
●
●
●
Protection
Infrared Photoelectric Detector
Optional
Air-Activated PC Door
●
Human-Machine Interface
●
Hydraulic Motor
3 HP
3 HP
3 HP
Electric current (Thermal Platen Excluded)
10 A
10 A
10 A
Max. Current Per Display
30 A
30 A
30 A
Max. Operation Area
1200 x 450 x 950
1200 x 450 x 950
1200 x 450 x 950
Max. Mold Spec.
1050 x 320 x 220
1050 x 320 x 220
1050 x 320 x 220
Min. Welding Length
260 mm
260 mm
260 mm
Machine Dimensions
2420 x 2050 x 1570
2420 x 2050 x 1570
2420 x 2050 x 1570
Crate Dimensions
2520 x 2300 x 1820
2520 x 2300 x 1820
2520 x 2300 x 1820
N.W.
1500 kg
1500 kg
1500 kg
G.W.
1800 kg
1800 kg
1800 kg
Code Descriptions
‧O: Hydraulic ‧N: Standard ‧C: Clamp ‧D: Safety door ‧MM: Human-machine interface.
