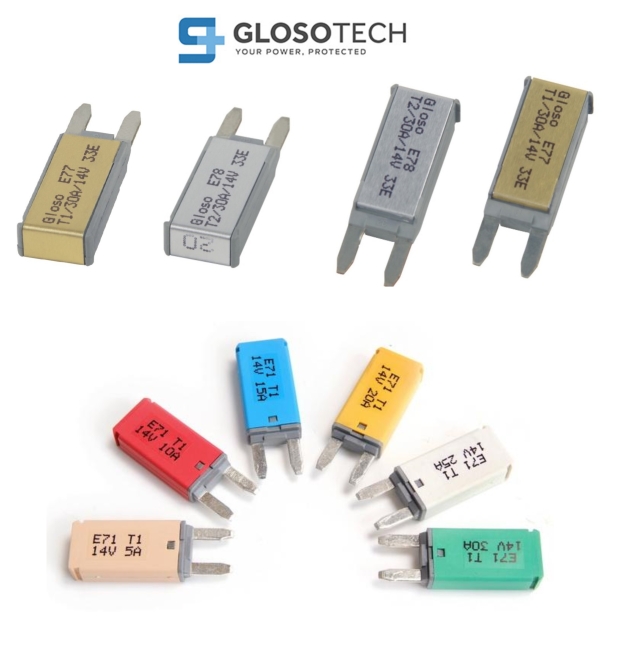

![E7 Mini Type Circuit Breaker E7 Mini Type Circuit Breaker](https://www.cens.com/cens/supplier/9230/product/116263/BIG.jpg?xxx=1723645724770)
E7 Mini Type Circuit Breaker
- Model:
- E7 Mini Circuit Breaker
- Material:
- Grey UL-Rated 94V-0 thermoplastic housing
- Color:
- Metal Body, T1:Gold, T2: Silver
Detail Specifications / Descriptions
E7 MINI Circuit Breakers
Single Pole Thermal Type Breakers
Rating: 5-30A; 14Vdc.
Interrupt Rating:
5-10A: 150A @ 14Vdc;
15A: 225A @ 14Vdc;
20A: 300A @ 14Vdc;
25-30A: 450A @ 14Vdc
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C).
Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C).
Materials: Grey UL-Rated 94V-0 thermoplastic housing with metal cover: gold (Type I) or silver (Type II).
Marking: Standard marking includes amp/voltage ratings, part number, and date code.
Termination: Compatible with 280 Type fuse blocks using 0.32in. (8.1mm) centerline spacing.
Compliances: SAE J553 Type I and Type II Circuit Breakers.
