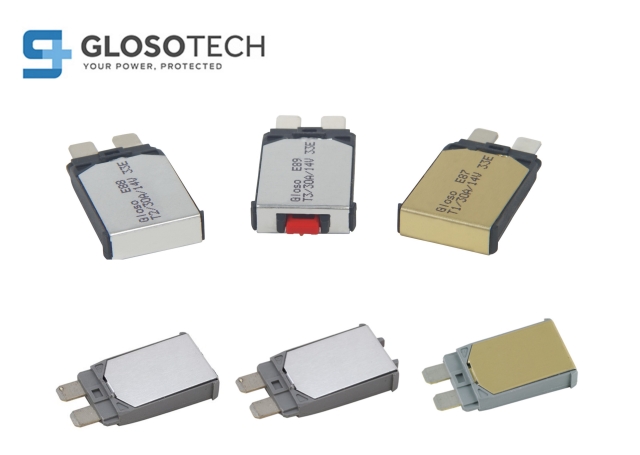

E8 ATC style Circuit Breaker
- Model:
- E87, E88, E89
- Country of Origin:
- China, Taiwan
- Material:
- UL-Rated 94V-0 thermoplastic housing with metal
- Color:
- Gold, Silver
Detail Specifications / Descriptions
E8 ATC Style Circuit Breaker
Rating: 5-30A, 14VDC; 28VDC
Interrupt Rating: 150A @ 14VDC (5-10A versions); 225A @ 14VDC (15A version); 300A @ 14VDC (20A version); 450A @ 14VDC (25-30A versions).
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)
Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
Materials: UL-Rated 94V-0 thermoplastic housing with gold metal cover
(Type I) or silver metal cover (Type II & III).
Marking: Standard marking includes amp/volt ratings, part number, and
date code.
Termination: Compatible with 280 Type or ATC® fuse blocks.
Compliances: SAE J553.
