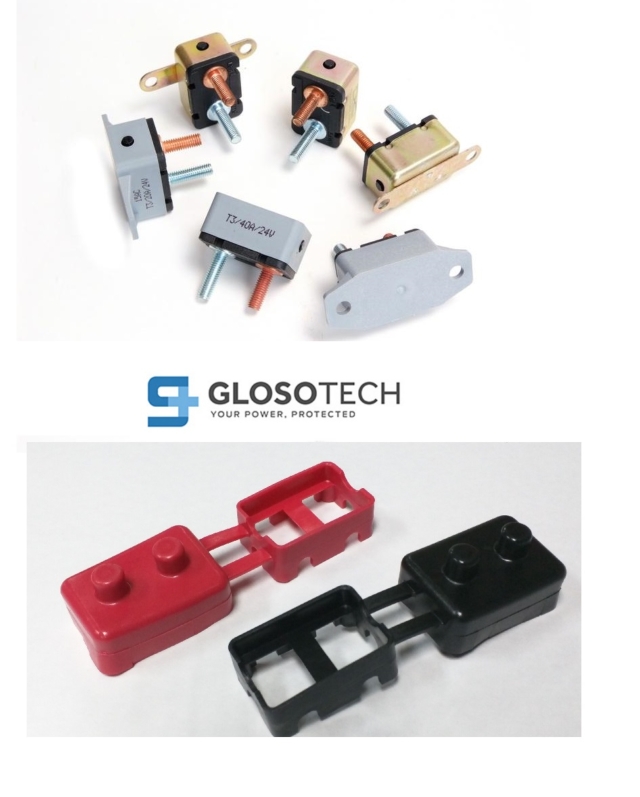

![E5 Stud Type Circuit Breaker, Shortstop Circuit Breaker E5 Stud Type Circuit Breaker, Shortstop Circuit Breaker](https://www.cens.com/cens/supplier/9230/product/116259/BIG.jpg?xxx=1723645725780)
E5 Stud Type Circuit Breaker, Shortstop Circuit Breaker
- Model:
- E5 series
- Country of Origin:
- China, Taiwan
- Material:
- Black UL-Rated thermoplastic body
- Color:
- Gray, Gold, Silver
Detail Specifications / Descriptions
E5 Stud type, shortstop circuit breakers
Applications: Battery chargers, trucks, buses, RVs, trolling motors, etc
Rating: 5-50A, 14Vdc; 28Vdc
Interrupt Rating: Main Circuit Protection: 1.5kA @ 12Vdc
Branch Circuit Protection: 2.5kA @ 12Vdc
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)
Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
Materials: Black UL-Rated thermoplastic body (thermoset for Type II body & buttons). Cover is grey
thermoplastic or steel-Type l gold, Type ll silver
Marking: Custom marking available. Consult factory for options
Termination: #10-32 thread and quick-connect options available
Torque Rating: 24 in-lbs (2.7 N•m) max
Mounting Torque Rating: Plastic cover - 15 in-lbs (1.7N N•m); Metal cover - 30 in-lbs (3.4 N•m)
Ingress Protection Rating: IP66 On plastic cover version only (except for terminals)
Compliances: SAE J553; SAE J1171 (ignition protected)
