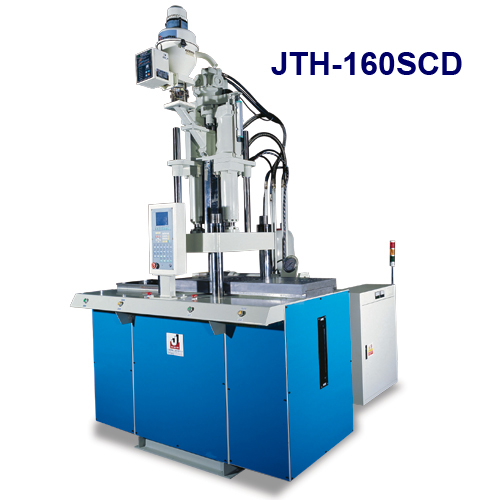

160 TON 6.0 OZ With Double Slides

160 TON 6.0 OZ With Double Slides

Model:
JTH-160SCD

Detail Specifications / Descriptions

‧120ton 6oz. Two-Sliding-Table
‧Vertical Plastic Bakelite Injection Molding Machines






This swivel plate can be applied for altering the mold or designing, helping enhance the production efficiency and safe to use.
It is firm and durable with a specially designed steel structure.
The liquid loop adopts specific pressure & specific current and multi-segmental control and computer liquid crystal display. It has such properties as high sensitivity, precision and accuracy. Different specifications are available for your option.








MODEL
Unit
JTH-160


(SD) (R)


Injection
Unit
Screw Diameter
MM
45
50
55


Injection Pressure
Kg/CM²
2031
1645
1360


Theoretical Shot Volume
CM³
318
392
475


Max. Shot Weight(PS)
G / OZ
292/10
361/12.5
436/15


Injection Rate
CM³ /Sec
146
180
218


Injection Stroke
MM
200


Screw Rotation Speed Max
RPM
0-210


Numbers of
Temperature Control
ZONE



Capacity of Hopper
L



Clamping
Unit
Clamping Force
T
160


Opening Force
T
16


Platen Size
MM
840 x 640


Distance Between Tie Bar
MM
580 x 380


Min. Mold Height
MM
250


Opening Stroke
MM
350


Max. Open Daylight
MM
600


Ejector Power
T
4.5


Ejector Stroke
MM
80

80


Slider
Unit
Slider Size/Turn
Table Diameter
MM
550x600

Ø1210


Numbers of
Mold Station
Sets


2


Max. Mold Dimension
MM


450x400


Rotation Angle of
Turn Table



180°


Hydraulic
Electricity
Unit
Max. Hydraulic Pressure
Kg/CM²
175


Pump Output
L/Min
116


Working Oil Consumption
L
400


Cooling Water Consumption
L
1400-1800


Hydraulic Motor Power
Kw/HP
18.75/25


Barrel Heater Capacity
KW
10


Total Electrical Consumption
KW
28.75


Others
Machine Weight
T
6 x 6.8


Machine Overall Dimensions
MM
3.0 x 2 x 3.7


Shipping Gross Weight
T
6.5

7.2


Shipping Measurements
(L x W x H)
MM
3.2 x 2.2 x 2.0
