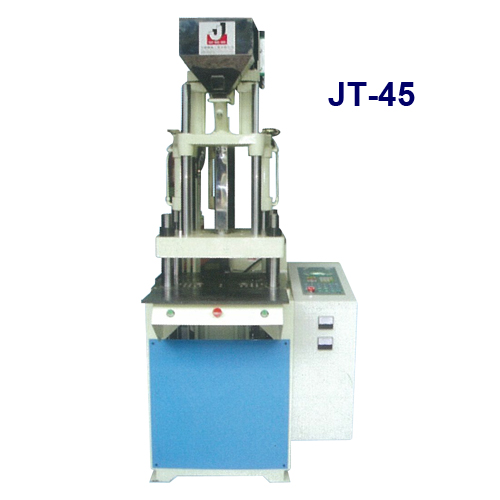

45 TON 3.5 OZ

45 TON 3.5 OZ

Model:
JT-45

Detail Specifications / Descriptions

MODEL
Unit
JT-45

(SD) (R)

Injection
Unit
Screw Diameter
MM
25
30
34

Injection Pressure
Kg/CM²
1746
1212
944

Theoretical Shot Volume
CM³
63
92
118

Max. Shot Weight(PS)
G / OZ
58
84
108

Injection Rate
CM³ /Sec
45
65
83

Injection Stroke
MM
130

Screw Rotation Speed Max
RPM
0-180

Numbers of Temperature Control
ZONE
3

Capacity of Hopper
L
20

Clamping
Unit
Clamping Force
T
45

Opening Force
T
8

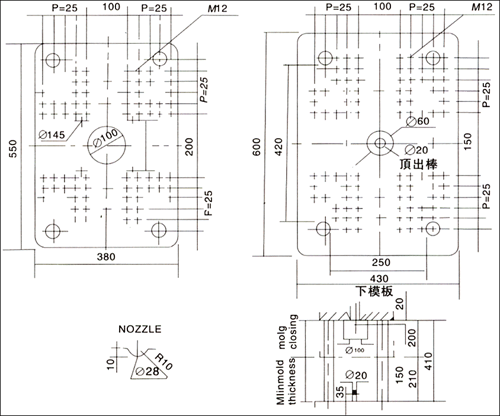

Platen Size
MM
570 x 400

Distance Between Tie Bar
MM
420 x 250

Min. Mold Height
MM
150

Opening Stroke
MM
200

Max. Open Daylight
MM
350

Ejector Power
T
1.3

Ejector Stroke
MM
65
32
65

Slider
Unit
Slider Size/Turn Table Diameter
MM
400 x 400
Ø740

Numbers of Mold Station
Sets

2

Max. Mold Dimension
MM

300 x 200

Rotation Angle of Turn Table


180°

Hydraulic Electricity Unit
Max. Hydraulic Pressure
Kg/CM²
140

Pump Output
L/Min
39

Working Oil Consumption
L
130

Cooling Water Consumption
L
600 - 800

Hydraulic Motor Power
Kw/HP
5.1/7.5

Barrel Heater Capacity
KW
3.5

Total Electrical Consumption
KW
9

Others
Machine Weight
T
1.5

Machine Overall Dimensions
MM
1.7 x 1.03 x 3.0

Shipping Gross Weight
T
1.7


Shipping Measurements(L x W x H)
MM
1.92 x 1.36 x 2.3
