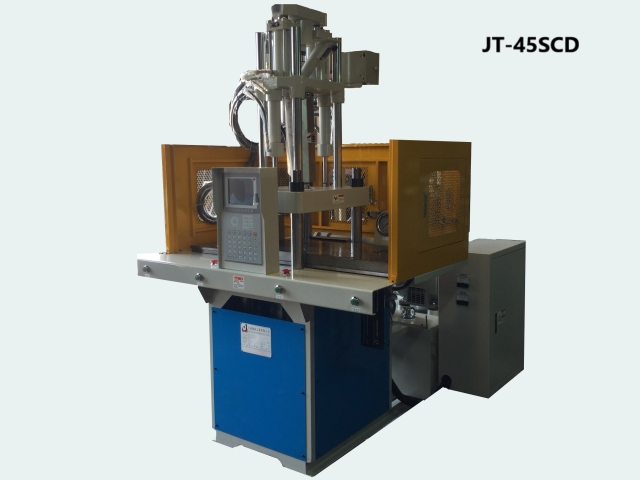

JT-45 SCD

‧45 TON 3.5 OZ
‧Double Slide Plate With Specific
‧Pressure & Specific Current Digital Control
‧Two-Sliding-Table Specific Pressure & Flow Speed Digital Control
‧Vertical Plastic Bakelite Injection Molding Machines







This swivel plate can be applied for altering the mold or designing, helping enhance the production efficiency and safe to use.
It is firm and durable with a specially designed steel structure.
The liquid loop adopts specific pressure & specific current and multi-segmental control and computer liquid crystal display. It has such properties as high sensitivity, precision and accuracy. Different specifications are available for your option.








Model
Unit
JT-45SCD


Injection Unit
Screw Dianter
MM
28
32
34


Injection Pressure
kg/cm²
1392
1065
944


Theoretical Shot Vlume
cm³
70
92
117


Max. Shot Weight (PS)
G / OZ
64 / 2.3
85 / 3
107 / 3.8


Max. Shot Weight (PS)
cm³ / sec
37
49
62


Injection Rate
MM
130


Screw Speed Max.
RPM
0-150


Nozzle Comtact Force
ZONE
3


Number of Temperater Control
L
20


Clanping Unit
Clamping Foce
T
45


Opening Force
T
5


Platen Size
MM
580 x 430


Distance Between Tie Bere
MM
420 x 250


Min. Mold Heigh
MM
210 / 150


Opening Stroke
MM
200


Max. Open Dayinght
MM
410 / 350


Ejector Power
T
1.3


Ejector Stroke
T
75m/m


Hydraulic Electricity Unit
Max. Hydraulic Pressure
kg / cm²
140


Pump Output
L / MIN
39


Oil Presservoir Capacity
L
130


Cooling Eaer Consumotion
L
600-800


Pump Motor Power
HP
7.5


Berrel Heating Power
KW
3.5


Total Weight
KW
9


Other
Machine Weight
T
2.4


Machine Dimensions (LxWxH)
M
1.7 x 1.03 x 3.0


Shipping Weight
T
2.7


Shipping Measurements (LxWxH)
M
1.92 x 1.36 x 2.3
