詳細規格及用途描述
The Outside Dimension:
Length: 460 mm
Width: 420 mm
Mini Height: 1140 mm
Max Height: 1400 mm
Mode: HV302
Capacity: 20L
Air Input Pressure: 3~7 bar 40~100 psi
Pressure Ratio: 32:1
Grease Output Pressure: 96~224 bar 1280~3200 psi
Deliver Rate: 34 g/cycle
Hose Length: -
N.W.: 76.0 kgs
G.W.: 91.0 kgs
CUFT: 12'

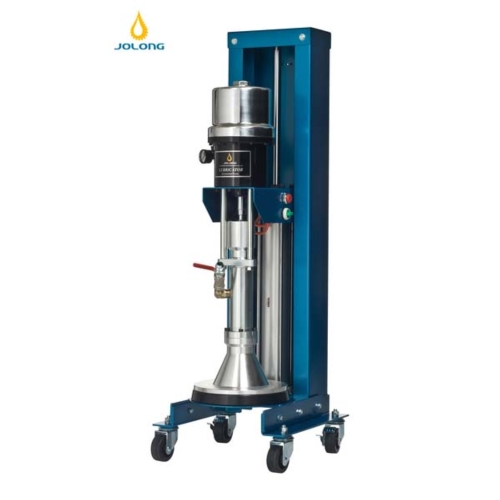

This pump use for suction No.0 ~ No.3 and high viscosity grease; it had two pneumatic cylinder to push the grease and make the pump shovel the grease easily.
