詳細規格及用途描述
The Outside Dimension:
Length: 750 mm
Width: 760 mm
Mini Height: 1000 mm
Max Height: 1400 mm
Mode: HV101
Capacity: 20L
Air Input Pressure: 4~9 bar 60~130 psi
Pressure Ratio: 45:1
Grease Output Pressure: 180~405 bar 2700~5850 psi
Deliver Rate: 9 g/cycle
Hose Length: 10 ft
N.W.: 52 kgs
G.W.: 77 kgs
CUFT: 10.9’

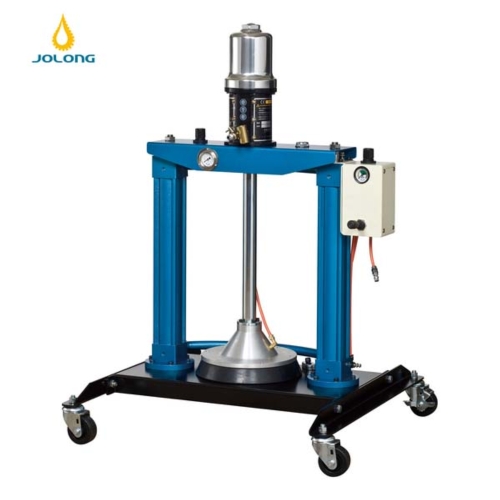

This pump use for suction No.0 ~ No.3 and high viscosity grease; it had two pneumatic cylinder to push the grease and make the pump shovel the grease easily.
