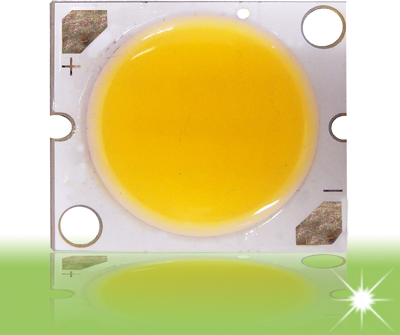

COB
- 產品型號:
- NT-COB-6-25
- 原產地:
- 台灣
- 材質:
- Aluminum Lead Frame
詳細規格及用途描述
Array String x Parallel：6S × 1P, 3S × 2P, 9S × 1P, 4S × 3P, 4S × 4P, 5S × 4P, 5S × 5P
Wattage：6W, 9W, 12W, 16W, 20W, 25W
Current (mA)：350(mA), 700(mA), 1050(mA), 1400(mA), 1750(mA)
Voltage (V)：3.5(V), 7.0(V), 10.5(V), 14.0(V), 17.5(V)
ColorTemper. (k)：Cool White 4700~8000(k)
Nature White 3500~4500(k)
Warm White 2500~3500(k)
Dimension：22.4×25.4×2.2±0.25mm
Features：● Long operation life
● Low voltage DC operated
● Color mixing capability
● Superior thermal performance
● ROHS compliance
Applicaztions：● Beacon light
● Stage light
● Contour light
● Commercial and Residential Architectural lighting
● Decoration lighting
