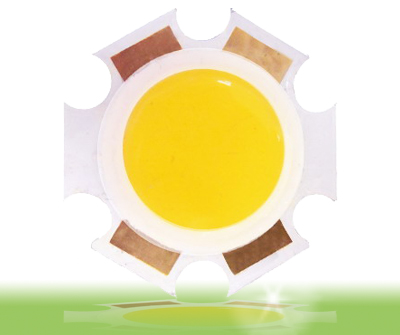

COB
- 產品型號:
- NT-COB-3-9
- 原產地:
- 台灣
- 材質:
- Aluminum Lead Frame
詳細規格及用途描述
Array String x Parallel：3S × 1P, 2S × 2P, 4S × 1P, 6S × 1P, 3S × 2P, 2S × 3P, 7S × 1P, 8S × 1P, 9S × 1P, 3S × 3P
Wattage：3W, 4W, 6W, 7W, 8W, 9W
Current (mA)：350(mA), 700(mA), 1050(mA)
Voltage (V)：3.5(V), 7.0(V), 10.5(V)
ColorTemper. (k)：Cool White 4700~8000(k)
Warm White 2500~3500(k)
Dimension：20.2×20.2×2.8±0.25mm
Features：● High Flux per LED
●Long operating life
● No UV
● Low voltage DC operated
● ESD Protection
●Various colors
● ROHS compliance
Applicaztions：● Signal lighting
● LCD Backlighting
● General lighting
● Reading light (car, bus, aircraft)
● Commercial and Residential Architectural lighting
● Decoration lighting
● Traffic signaling and wayside lighting
