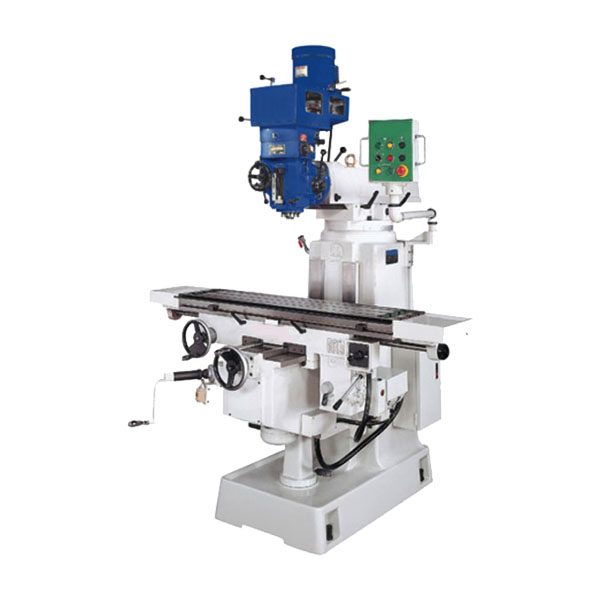

High Precision Vertical Milling Machine

Features

Max. Table Load: 350-400 kgs
X,Y Axes Lead Screw
Hardened and ground slide ways assures that the table will stay where it belongs
Gear box feed to maintain powerful machining and end milling, and make working more efficiently
The very wide saddle 910mm keeps table movement smoothly in all directions to prevent from any deformation and allowance occurred

Description

Milling Machine of A model: with Step Speed Head; B model: Variable Speed Head
Solid construction, made of meehanite cast iron
Made in Taiwan with accurate performance

Specification




ITEMS
MW0800-044A
MW0800-044B


TABLE
WORKING SURFACE
1270x 300


T SLOT (WxNo.xPITCH)
16x 3x 80


TRAVEL
XxYxZ-MANUAL
930x 400x 450


XxYxZ-AUTO
920x 380x 450


FEED
LONG./MIN.
22-384 (6 STEPS)


LONG. RAPID TRAVERSE/MIN.
1250


VERTI. RAPID TRAVERSE/MIN.
430


SPINDLE
SPINDLE NOSE
N.S.T. 40


STEPS
10
INFINITELY VARI.


SPINDLE SPEED RPM
70-3600
80-3800


SWIVELLING ANGLE
45° (R&,L)


QUILL TRAVEL
127


QUILL FEEDS/REV.
0.04/0.08/0.15


SPINDLE NOSE TO TABLE
45-495


SPINDLE CENTER TO COLUMN
130-550


CROSS TRAVEL OF RAM
420


HORIZONTAL ROTATION OF RAM
360°


MOTOR
VERTICAL SPINDLE
5HP-4P
5HP-4P


FEED LONG.
3/4HP-4P


RAPID VERTICAL
1/2HP-4P-1/10


COOLANT PUMP
1/8HP-2P


SIZE
MACHINE (LxWxH)
1740x 1540x 2330


NET WEIGHT (KGS)
1650
1700




Standard Accessories:

Coolant equipment
Long. gear box feed
Slide way auto lub. Pump
Table elevating motor

Optional Functions:

X, Y Axes Ball Screw with inverter movement
Long. Ball Screw Movement
X Axis feed Motor: 1HP-2P/4P

The product pictures are for your reference only: final spec & accessories based on formal quotation
