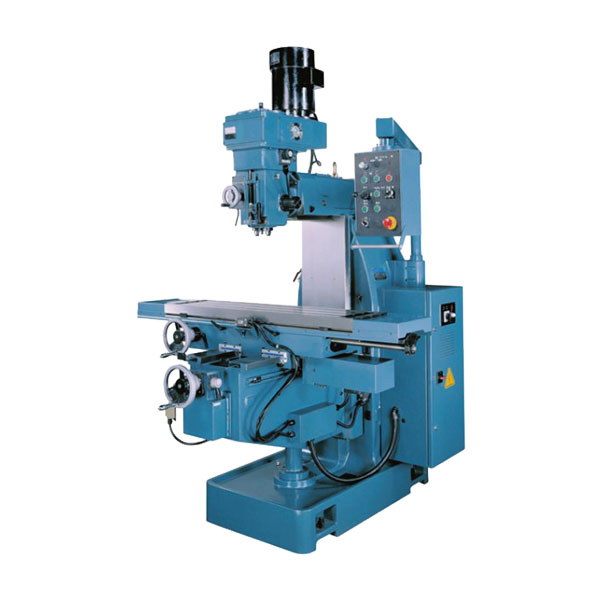

3 Axes Vertical Milling Machine
Hot- 产品型号:
- MW0800-040
- 原产地:
- 台湾
- 材质:
- To be advised
- 颜色:
- Final detail to be provided on formal quotation sheet
详细规格及用途描述
Features
Max. Table Load: 400 kgs
X, Y Axes Ball Screw C5 Class
X, Y Axes Servo Motor
Steel Telescopic on Y Axis
Description
Two types of milling machine: inverter variable speed head (A) or step speed head (B)
Main casting made of meehanite cast iron
Ship from Taiwan with stable functions
Specification
ITEMS
MW0800-040A
MW0800-040B
TABLE
TABLE SIZE
1270x370 (1470x370 OPT.)
T SLOT (WxNO.xPITCH)
18x3x80
TRAVEL
X xYxZ- MANUAL
930 x520x360
XxYxZ- AUTO
920x500x360
FEED
LONG. & CROSS/MIN.
30-3000
VERTICAL PAPID/ MIN.
1150
SPINDLE
SPINDLE NOSE
N.S.T. 40
STEPS
INVERTER VARI.
16
SPINDLE SPEED RPM
60-3600
75-3600
SWIVELLING ANGLE
45° (R&L)
QUILL TRAVEL
140
QUILL FEEDS/REV
0.035/0.07/0.14
SPINDLE NOSE TO TABLE
0-500
SPINDLE CENTER TO COLUMN
185-685
CROSS TRAVEL OF RAM
500
MOTOR
VERTICAL SPINDLE
5HP-4P
5HP-2P/4P
X,Y AXIS MOTOR
750W AC SERVO
Z AXIS MOTOR
1HP-12P (850W AC SERVO OPT.)
Z AXIS MOTOR
1/8HP-2P
SIZE
MACHINE (LxWxH)
1870x1700x2500
NET WEIGHT(KGS)
2250
Standard Accessories :
X,Y Axis Ball screw C5 Class
Vertical Head Auto Lub. Pump
X,Y Axis Servo Motor
Optional Accessories:
Model: A only
with vertical mechanic
Vari. speeds head
Range: 80-3800rpm
Motor: 5HP-4P
Z Axis Servo Motor 30-1150mm/min
X Axis Travel: 1120mm
The product pictures are for your reference only: final spec & accessories based on formal quotation
