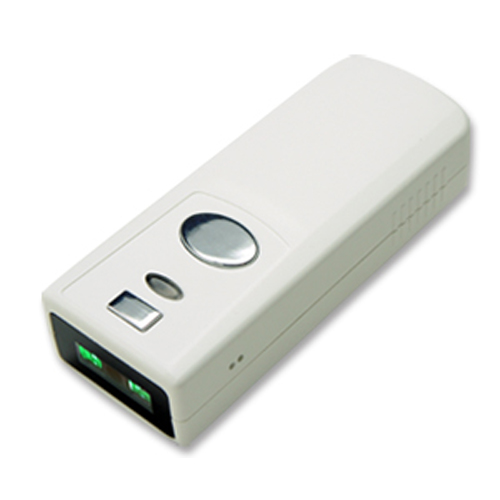

MT1197MW ANTIMICROBIAL MINI POCKET SCANNER IS READY FOR MEDICAL USES
- 产品型号:
- MT1197MW
详细规格及用途描述
MT1197MW is the most compact Bluetooth barcode scanner designed for particular medical uses with no hassle. According to Marson’s friendly firmware algorithm of non-pin code pairing technology, MT1197MW, with less size 60%~80% compared with handheld scanners, can easily connect to a mobile tablet with iOS, Android, and/or Windows-base OS by one click. Specifications Optical & Performance Light Source 525 nm visible green LED Sensor 1000 pixels CMOS sensor Scan Rate 240 Scans/Sec Resolution 5mil/ 0.127mm Scan Angle 46° Print Contrast 30% Width of Field 102mm (13Mil Code 39) Memory 2MB (20,000 barcodes) D.O.F (Environment:800lux) 5 Mil Code39: 20 ~ 70mm 10 Mil Code39: 30 ~ 130mm 15 Mil Code39: 45 ~ 180mm 13 Mil UPC/ EAN: 40~130mm Physical Characteristics Dimension W27×L68×H15 mm Weight 27g Color Black Material PC Cable 1.5M (Mini USB Cable) Trigger Scan Button, iOS Hotkey Indicator buzzer, LED, Vibrator Accessories - Handstrap - Mini USB cable - Silicon Cover Power Operation Voltage 3.7 VDC ± 5% Working Current < 220mA Standby Current < 65mA Idle Current < 500uA Battery 3.7V, 400mAh, Lithium Battery Number of Scan (per full charge) 5400 scans (1 scan/ 5 secs, Bluetooth connected) Connectivity Radio Bluetooth 2.1 + EDR (Class2) Range 33 ft/ 10m (line of sight) Interface/ Profile SPP (Android, Mac) HID (Android, iOS, Windows) User Environment Operating Temperature -0~50˚C Storage Temperature -20~60˚C Humidity 0%~95%RH (Non-condensing) Drop Durability 1.8M (w/ Silicone Cover) Sealing IP44 (w/ Silicone Cover) Ambient Light 20,000 Lux (Fluorescent Light) 1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar Regulatory EMC CE, FCC part15, Class B ESD Functional after 4KV contact, 8KV Air discharge Safety RoHS 2.0, WEEE * All Specifications are subject to change without notice.
