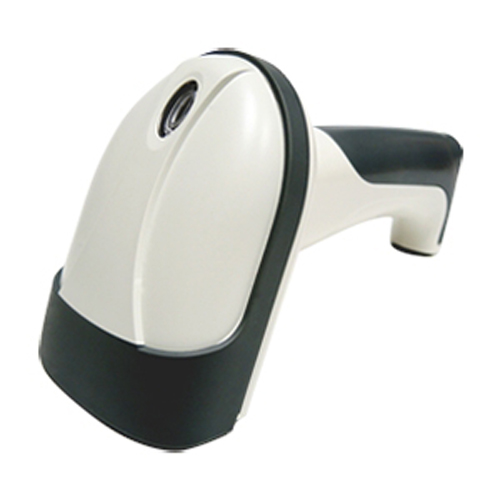

MT7955TA HIGH DENSITY BARCODE SCANNER WITH LASER AIMER FOR SMB RETAIL MANAGEMENT

Introduction MT7950TA is Marson's highest specification handheld scanner. MT7950TA can easily scan the 3mil barcode. With high sensitivity of infrared sensors, place MT7950TA on a dedicated stand, MT7950TA will able to sensing and scanning barcodes automatically. Built-in vibrator allows users to be able to know is the barcode has been scan correctly in a noisy environment. Features High Density Senso Outstanding Performance Read on Screen Vibrating Indicator High sensitive Auto triggering Easy Configuration Easy Aiming Green LED Illumination Specifications Optic & Performance Light Source 630nm visible red LED 525nm visible green LED Aimer 650nm visible red laser Sensor 2048 pixels CCD Sensor Scan Rate 200 scans/ sec Resolution 3mil/ 0.075mm Scan Angle 40° Print Contrast 30% Width of Field 130mm(PCS=90%，1mm Code) Memory N/A D.O.F (Environment: 800 lux) 4 Mil Code39: 25 ~ 110mm 5 Mil Code39: 15 ~ 120mm 10 Mil Code39: 0 ~ 280mm 15 Mil Code39: 0~ 350mm 13 Mil UPC/ EAN: 0 ~ 290mm Physical Characteristics Dimension W71×L166×H84 mm Weight 146g±5g Color Gray Material ABS+TPR Cable 2.1 m Trigger Scan Button Indicator Buzzer, LED, Vibrator Power Operation Voltage 5 VDC ± 5 % Working Current < 200mA Standby Curren < 60mA Idle Current N/A Surge Current < 1300mA Battery N/A Number of Scan (per full charge) N/A Connectivity Radio Bluetooth 2.1 +EDR (Class1) Range 100M (line of sight) Interface/ Profile SPP (Android, Mac), HID(Android, iOS, Windows), USB/USB-VCP User Environment Operating Temperature 0~40˚C Storage Temperature -10~60˚C Humidity 20%~85%RH (Non-condensing) Drop Durability 1.8M Sealing N/A Ambient Light 10000 Lux (Fluorescent Light) 1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar 2D Symbologies N/A Regulatory EMC CE, FCC part15, Class B ESD Functional after 4KV contact, 8KV Air discharge Safety RoHS 2.0, WEEE
