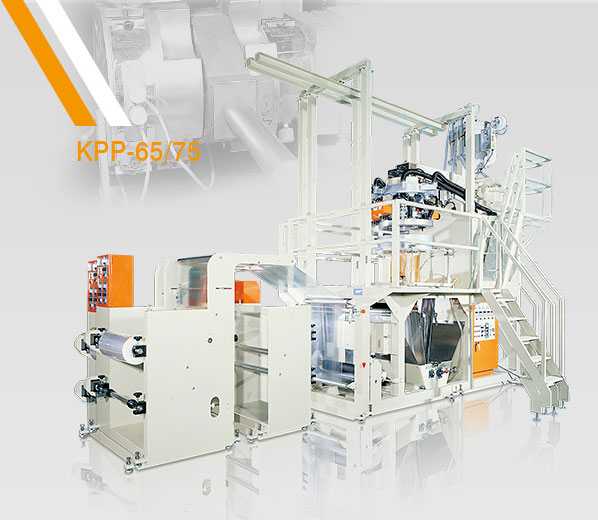

P.P. HIGH SPEED PLASTIC INFLATION MACHINE

P.P. HIGH SPEED PLASTIC INFLATION MACHINE

Model:
KPP-65/75

Detail Specifications / Descriptions

MODEL KPP-65 KPP-75
KPP-65 KPP-75
SUITABLE MATERIAL P.P. P.P.
P.P. P.P.
FILM THICKNESS 0.025-0.10 mm 0.025-0.10 mm
0.025-0.10 mm 0.025-0.10 mm
FILM WIDTH RANGE 650 mm 900 mm
650 mm 900 mm
FILM OUTPUT 28-60 kgs/hr 30-70 kgs/hr
28-60 kgs/hr 30-70 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø 65 mm Ø 75 mm
Ø 65 mm Ø 75 mm
SCREW L/D RATIO 28:1 28:1
28:1 28:1
HEATING CAPACITY 16.1 kw 21 kw
16.1 kw 21 kw
AUTO THERMO CONTROL 5 zone 5 zone
5 zone 5 zone
BARREL COOLING FAN 1/16 HP x 2 1/16 HP x 2
1/16 HP x 2 1/16 HP x 2
DRIVING MOTOR AC 30 HP + Inverter AC 40 HP + Inverter
AC 30 HP + Inverter AC 40 HP + Inverter
DIE UNIT
DIE DIAMETER Ø300 mm Ø450 mm
Ø300 mm Ø450 mm
AIR RING DIAMETER Ø450 mm Ø700 mm
Ø450 mm Ø700 mm
HEATING CAPACITY 8.6 kw 12 kw
8.6 kw 12 kw
AUTO THERMO CONTROL 2 zone 2 zone
2 zone 2 zone
COOLING BLOWER 2 HP 3 HP
2 HP 3 HP
WATER RING 10 pcs 10 pcs
10 pcs 10 pcs
TAKE-UP UNIT
TAKE-UP ROLLER 760 mm 1100 mm
760 mm 1100 mm
EFFECTIVE WIDTH 650 mm 900 mm
650 mm 900 mm
TAKE-UP MOTOR AC 2 HP AC 2 HP
AC 2 HP AC 2 HP
TAKE-UP SPEED 35 m/min 30 m/min
35 m/min 30 m/min
WINDING UNIT
ROLLER WIDTH 760 mm 1100 mm
760 mm 1100 mm
WINDING WIDTH 650 mm 900 mm
650 mm 900 mm
WINDING MOTOR DC 1/2 HP DC 1/2 HP
DC 1/2 HP DC 1/2 HP
MACHINE DIMENSION 500x200x400 cm 730x450x470 cm
500x200x400 cm 730x450x470 cm
* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
