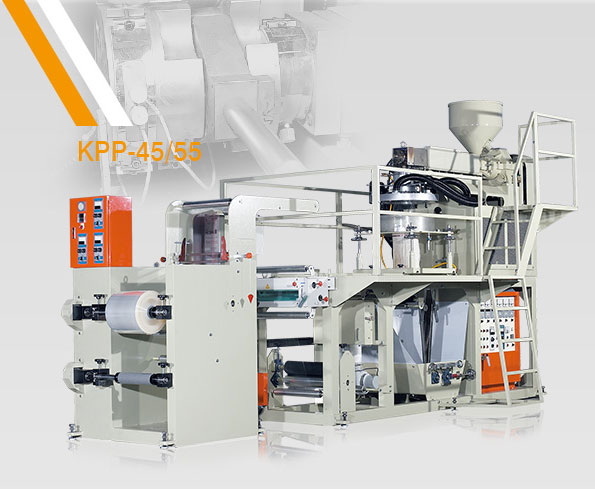

P.P. HIGH SPEED PLASTIC INFLATION MACHINE

P.P. HIGH SPEED PLASTIC INFLATION MACHINE

Model:
KPP-45/55

Detail Specifications / Descriptions

MODEL KPP-45 KPP-55
KPP-45 KPP-55
SUITABLE MATERIAL P.P. P.P.
P.P. P.P.
FILM THICKNESS 0.02-0.1 mm 0.025-0.1 mm
0.02-0.1 mm 0.025-0.1 mm
FILM WIDTH RANGE 400 mm 520 mm
400 mm 520 mm
FILM OUTPUT 18-25 kgs/hr 22-45 kgs/hr
18-25 kgs/hr 22-45 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø 45 mm Ø 55 mm
Ø 45 mm Ø 55 mm
SCREW L/D RATIO 28:1 28:1
28:1 28:1
HEATING CAPACITY 9.6 kw 13.1 kw
9.6 kw 13.1 kw
AUTO THERMO CONTROL 4 zone 4 zone
4 zone 4 zone
BARREL COOLING FAN 1/16 HP x 2 1/16 HP x 2
1/16 HP x 2 1/16 HP x 2
DRIVING MOTOR AC 15 HP + Inverter AC 20 HP + Inverter
AC 15 HP + Inverter AC 20 HP + Inverter
DIE UNIT
DIE DIAMETER Ø150 mm Ø250 mm
Ø150 mm Ø250 mm
AIR RING DIAMETER Ø250 mm Ø350 mm
Ø250 mm Ø350 mm
HEATING CAPACITY 3.3 kw 6.5 kw
3.3 kw 6.5 kw
AUTO THERMO CONTROL 2 zone 2 zone
2 zone 2 zone
COOLING BLOWER 1 HP 1 HP
1 HP 1 HP
WATER RING 10 pcs 10 pcs
10 pcs 10 pcs
TAKE-UP UNIT
TAKE-UP ROLLER 500 mm 660 mm
500 mm 660 mm
EFFECTIVE WIDTH 400 mm 520 mm
400 mm 520 mm
TAKE-UP MOTOR AC 1/2 HP AC 1 HP
AC 1/2 HP AC 1 HP
TAKE-UP SPEED 40 m/min 40 m/min
40 m/min 40 m/min
WINDING UNIT
ROLLER WIDTH 500 mm 660 mm
500 mm 660 mm
WINDING WIDTH 400 mm 520 mm
400 mm 520 mm
WINDING MOTOR DC 1/2 HP DC 1/2 HP
DC 1/2 HP DC 1/2 HP
MACHINE DIMENSION 400x120x370 cm 450x180x425 cm
400x120x370 cm 450x180x425 cm
* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
