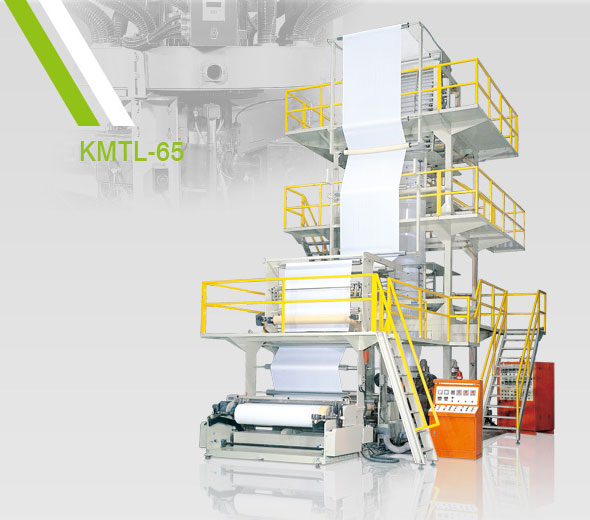

TWO LAYER HDPE/LDPE/ LLDPE HIGH SPEED PLASTIC INFLATION MACHINE
- Model:
- KMTL-65
Detail Specifications / Descriptions
| MODEL | KMTL-65 |
|---|---|
| KMTL-65 | |
| SUITABLE MATERIAL | HDPE/LDPE/LLDPE |
| HDPE/LDPE/LLDPE | |
| FILM THICKNESS | 0.03-0.15 mm |
| 0.03-0.15 mm | |
| FILM WIDTH RANGE | 2000 mm |
| 2000 mm | |
| FILM OUTPUT | 60-250 kgs/hr |
| 60-250 kgs/hr | |
| EXTRUDER UNIT | |
| SCREW DIAMETER/TYPE | Ø 65mm x 2 |
| Ø 65mm x 2 | |
| SCREW L/D RATIO | 28:1 |
| 28:1 | |
| HEATING CAPACITY | 29.4 kw |
| 29.4 kw | |
| AUTO THERMO CONTROL | 8 zone |
| 8 zone | |
| BARREL COOLING FAN | 1/8 HP x 8 |
| 1/8 HP x 8 | |
| DRIVING MOTOR | AC 50 HP + Inverter |
| AC 50 HP + Inverter | |
| DIE UNIT | |
| DIE DIAMETER | Ø500 mm |
| Ø500 mm | |
| AIR RING DIAMETER | Ø550 mm |
| Ø550 mm | |
| HEATING CAPACITY | 24 kw |
| 24 kw | |
| AUTO THERMO CONTROL | 3 zone |
| 3 zone | |
| COOLING BLOWER | 10 HP |
| 10 HP | |
| TAKE-UP UNIT | |
| TAKE-UP ROLLER | 2200 mm |
| 2200 mm | |
| EFFECTIVE WIDTH | 2000 mm |
| 2000 mm | |
| TAKE-UP MOTOR | AC 3 HP |
| AC 3 HP | |
| TAKE-UP SPEED | 40 m/min |
| 40 m/min | |
| ELEVATING MOTOR | |
| WINDING UNIT | |
| ROLLER WIDTH | 2200 mm |
| 2200 mm | |
| WINDING WIDTH | 2000 mm |
| 2000 mm | |
| WINDING MOTOR | DC 2 HP |
| DC 2 HP | |
| MACHINE DIMENSION | |
